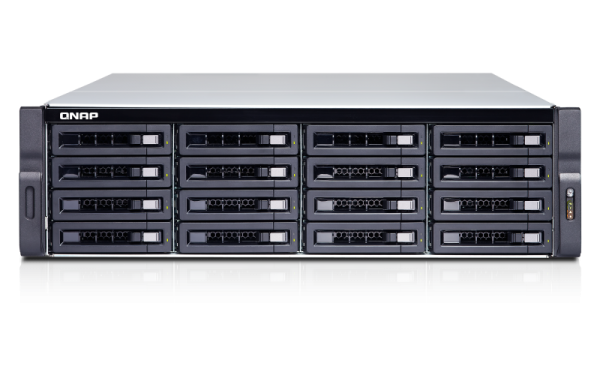

Thiết bị lưu trữ QNap TDS-16489U R2


Giá tham khảo:

Dual CPU and dual OS system: A perfect NAS solution for high-performance computing and storage by using the QES or QTS operating system

Integrating an application server and storage server into one system, the next-generation TDS-16489U R2 also provides you with the option of using either QES (an enterprise-grade OS that provides efficient and reliable storage for mission-critical tasks) or QTS (a feature-rich OS for storage and diverse application servers). Whether being used as a file server, virtualization server, VDI, medium-sized data center, video streaming, surveillance storage, and efficient file backup & recovery, the flexible TDS-16489U R2 with dual CPU and dual OS options is your ideal solution.

  • Install PCIe cards to increase application performance, including 40GbE/ 25GbE/ 10GbE adapters, Fibre Channel cards, and graphics cards.

  • QES ensures data integrity with self-healing and uses end-to-end checksums to detect and correct silent data corruption.

  • QES supports data deduplication and compression to optimize storage utilization and data access performance.

  • QES supports near-limitless snapshots and SnapSync for efficient remote backup & disaster recovery solution.

  • Reliable storage for virtualization. QTS supports hosting VMs and containers; QES supports block-level storage for OpenStack® environments.

  • QTS supports software-defined SSD over-provisioning to improve write performance for IOPS-demanding applications.


Available Models


Dual Intel® Xeon® E5-2620 v4 eight-core 2.1 GHz processors (burst up to 3.0 GHz), 64 GB DDR4 RAM (8 GB x8)


Dual Intel® Xeon® E5-2620 v4 eight-core 2.1 GHz processors (burst up to 3.0 GHz), 128 GB DDR4 RAM (16 GB x8)


Dual Intel® Xeon® E5-2630 v4 ten-core 2.2 GHz processors (burst up to 3.1 GHz), 128 GB DDR4 RAM (16 GB x8)


Dual Intel® Xeon® E5-2630 v4 ten-core 2.2 GHz processors (burst up to 3.1 GHz), 256 GB DDR4 RAM (32 GB x8)


CPU E5-2620 v4 8-core 2.1 GHz processor x2 (TDS-16489U-SE1-R2, TDS-16489U-SE2-R2)

E5-2630 v4 10-core 2.2 GHz processor x2 (TDS-16489U-SF2-R2, TDS-16489U-SF3-R2)

*Available with customization requirement
CPU Architecture 64-bit x86
Floating Point Unit
Encryption Engine  (AES-NI)
System Memory 64GB RDIMM DDR4 (8 x 8GB) (TDS-16489U-SE1-R2)

128GB RDIMM DDR4 (8 x 16GB) (TDS-16489U-SE2-R2)

128GB RDIMM DDR4 (8 x 16GB) (TDS-16489U-SF2-R2)

256GB RDIMM DDR4 (8 x 32 GB) (TDS-16489U-SF3-R2)

Maximum Memory RDIMM/LRDIMM: 1 TB (16 x 64 GB)
Memory Slot 16 x Long-DIMM DDR4

You can only use one type of dual in-line memory module (DIMM) at a time. Do not use registered DIMM (RDIMM) with load-reduction DIMM (LRDIMM) memory.
For the memory installation guidelines, see chapter 5 of the TDS-16489U User Guide.
Flash Memory 4GB (DOM for dual OS)
Drive Bay Front: 16 x 3.5-inch
Rear: 4 x 2.5-inch
Drive Compatibility 3.5-inch bays:
3.5-inch SATA/SAS hard disk drives
2.5-inch SATA/SAS hard disk drives
2.5-inch SATA/SAS solid state drives2.5-inch bays:
2.5-inch SATA/SAS solid state drives
Gigabit Ethernet Port (RJ45) 2

For a list of compatible network adapters, please visit the Compatibility List.
For instructions on how to install network adapters, please refer to Chapter 6 of the QNAP NAS Hardware Manual.
10 Gigabit Ethernet Port 4 x 10GbE SFP+
Jumbo Frame
PCIe Slot 4 (3 x PCIe Gen3 x8, 1 x PCIE Gen3 x16)
USB 3.0 port 4
Form Factor 3U Rack Mount
LED Indicators HDD 1-16, Status, 10 GbE, LAN, storage expansion port status
Buttons Power, Reset
Dimensions (HxWxD) 130.8 × 444 × 744 mm
Weight (Net) 22.42 kg
Weight (Gross) 30.19 kg
Operating temperature 0 – 40 °C (32°F – 104°F)
Relative Humidity 5~95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit Redundant/ Hot Swap ATX Power Supply,Input:
50-60 Hz
100-127V~/ 8.5A
200-240V/ 4.2A
Output: 650W
Power Consumption: HDD Sleep Mode 254.21 W
Power Consumption: Operating Mode, Typical 362.86 W
Fan 4 x 6cm smart cooling fan (12V DC)
Sound Level 37.8 db(A)
