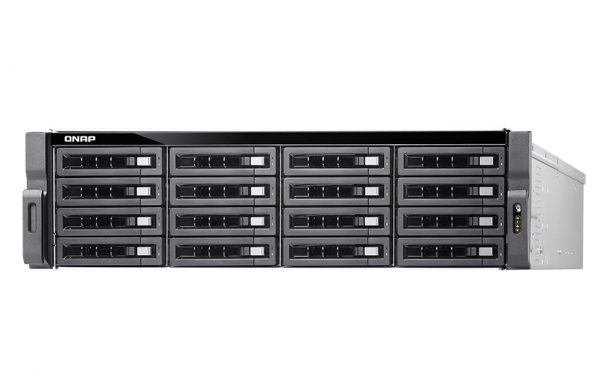

Thiết bị lưu trữ QNAP TDS-16489U-SA2

Thiết bị lưu trữ QNAP TDS-16489U-SA2

SKU: TM2486
Category:

Giá tham khảo:

Model Name TDS-16489U-SA1
(E5-2620 2.4GHz 6-core processor x2, 64GB DDR4 RDIMM)


TDS-16489U-SB2
(E5-2630 2.4GHz 8-core processor x2, 128GB DDR4 RDIMM)
TDS-16489U-SA2
(E5-2620 2.4GHz 6-core processor x2, 128GB DDR4 RDIMM)


TDS-16489U-SB3
(E5-2630 2.4GHz 8-core processor x2, 256GB DDR4 RDIMM)
CPU Intel® Xeon® E5-2600 v3 Family processor

  1. Intel® Xeon® 4-core Processor E5-2623 v3 (10M Cache, 3.00 GHz, 4-core)*
  2. Intel® Xeon® 6-core Processor E5-2620 v3 (15M Cache, 2.40 GHz)
  3. Intel® Xeon® 8-core Processor E5-2630 v3 (20M Cache, 2.40 GHz)
  4. Intel® Xeon® 8-core Processor E5-2640 v3 (20M Cache, 2.60 GHz)*

*Available with customization requirement

Memory System memory: RDIMM / LRDIMM
Total memory slots:16
Naming rule:
USB 4 x USB 3.0 port
Hard Drive
  1. 16 x 3.5-inch SAS (12Gbps/6Gbps), SATA (6Gbps/3Gbps) hard drive, or 2.5-inch SAS/SATA SSD
  2. 4 x 2.5-inch SAS (12Gbps) SSD, or SAS/SATA (6Gbps/3Gbps) SSD
Maximized Raw Capacity 128 TB
Hard Drive Interface SAS 12Gb/s, backward compatible with SAS/SATA 6Gbps
10/100/1000 Mbps LAN Port 2
10Gbps LAN Port 4 x SFP+、Intel XL710
PCIe Slot 4 (3 x PCIe Gen3 x8, 1 x PCIE Gen3 x16)
Form Factor 3U, rackmount
Dimension 130.8 (H) x 444 (W) x 744 (D) mm
Weight Net weight (NAS only): 22.42 kg/ 49.43 lb
Gross weight (with packing and accessories): 30.19 kg/ 66.56 lb
Sound Level* Sound pressure (LpAm) :37.8 dB(A)
Power Consumption Sleep mode: 254.21 W
In Operation: 362.86 W
Power Supply 650W (Redundant power)
Fan 4 x 6cm smart cooling fan (12V DC)

1. Power Button 7. IPMI VGA
2. LED Indicator:
10 GbE, Status, LAN, Storage Expansion Port Status
8. IPMI Console
3. 10 GbE SFP+ Port x 4 9. Gigabit LAN Port x 2
4. Password & Network Settings Reset Button 10. USB Port x 4
5. Console (Reserved) 11. PCIe Slot x 4
(Left slot: 3 x PCIe Gen3 x8; Left slot: 1 x PCIe Gen3 x16)
6. IPMI LAN Port 12. Power Connector
Remark:
The TDS-16489U rack mount models comply with ANSI/EIA-RS-310-D rack mounting standards. Before purchasing the server racks for these models, please make sure the server racks conform to the following criteria:

1. Rack size

  1. Mounting post width : ≥ 451mm
  2. Panel width : ≥ 485mm
  3. Mounting post depth : 579.1mm~873.5mm
  4. The distance between two rack posts is 465mm (center-to-center measurement of the rack’s square holes)

2. The optional rack kits for the TDS-16489U rack mount models are only compatible with square-hole server racks.


* Testing Environment:
Refer to ISO 7779 ; Maximum HDD loaded ; Bystander Position ; Average data from 1 meter in front of operating NAS
