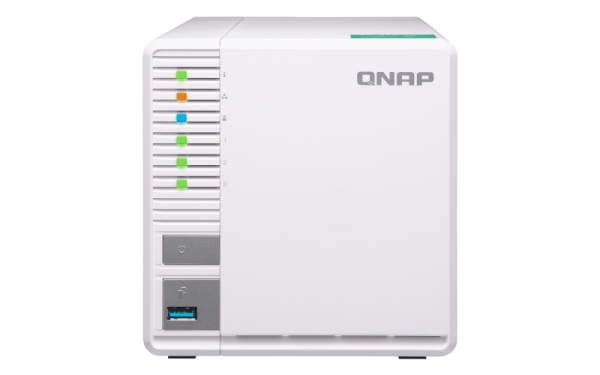

Budget-friendly RAID 5 NAS providing more storage space and data protection
30% of QNAP users choose to build RAID 5 array for their NAS for higher data protection, better system performance and more available storage space. The TS-328 is QNAP’s first 3-bay NAS, allowing you to build a RAID 5 array on your NAS with the fewest disks. Powered by a Realtek quad-core RTD1296 processor, the TS-328 features a minimalist design that easily fits into your home or commercial space. With a variety of multimedia applications, transcoding capabilities and cross-device file backup and synchronization, the TS-328 provides a highly cost-effective solution for storage, backup, file management, and sharing.
With just three disks you can build a secure RAID 5 array on the TS-328. This provides optimized storage capacity and protection against one disk failing.
Supports H.264/H.265 hardware decoding and transcoding, providing a smoother video viewing experience.
Snapshots fully record system status and data (including metadata). If files are accidentally deleted or modified, you can quickly restore the data with snapshots.
Qfiling automates file organization, greatly improving work efficiency.
Hybrid Backup Sync consolidates backup and sync tasks to a single app; Qsync is an easy-to-use real-time file sync service for computers and mobile devices.
Take photos or record videos using Qphoto on your mobile device and they will be automatically uploaded to the TS-328.
Realtek RTD1296 quad-core 1.4 GHz processor, 2GB memory
|CPU||Realtek Quad-core ARM Cortex-A53 (64-bit), RTD 1296, 1.4GHz|
|System Memory||2GB DDR4 RAM (not expandable)
Note: The TS-328 reserves some RAM for use as shared graphics memory.
|Flash Memory||4GB eMMC|
|Drive Bay||Hot-swappable 3 x 3.5″/2.5″ SATA 6Gb/s HDD/SSDs (bundled one 2.5″ tray base for installing 2.5″ HDD/SSD; additional purchase can be made from QNAP shop)|
|Gigabit Ethernet Port||2 x RJ45 Gigabit LAN port|
|USB Port||2 x USB 3.0 (1 x Front); 1 x USB 2.0 (Rear)|
|Audio||speaker, 3.5mm line out jack|
|LED Indicators||Status/Power, LAN, USB, HDD|
|Buttons||Power, USB copy, Reset|
|Security Slot||Kensington security slot|
|Dimensions (H x W x D)||142 x 150 x 260.1 mm
5.59 x 5.9 x 10.24 inch
|Weight||Net weight: 1.64 kg (3.62 lbs)
Gross Weight: 2.69 kg (5.93 lbs)
|Operating Temperature & Relative Humidity||0 ~ 40˚C (32˚F ~ 104˚F)
5~95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
|Power Consumption (W)||HDD standby: 7.24W
In operation: 18.35W
|Power Supply Unit||External Adapter 65W, 100 – 240 V|
|Fan||1 x 9 cm smart Fan (12V DC)|
|Sound Level||16.5 dBA|
|Package Contents||NAS, QIG, 1 x RJ45 ethernet cables, AC adapter|
