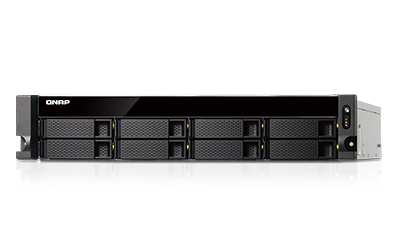

Thiết bị lưu trữ QNAP TS-863U-RP-4G

SKU: TM1370

Giá tham khảo:


The TS-863U-RP is a powerful network storage system powered by a high-performance AMD quad-core processor. It uniquely provides 10GbE at a budget price to maximize ROI, and doubles the encrypted file transfer performance with the AES-NI hardware-accelerated encryption engine to over 800 MB/s. Powered by the QTS operating system, the TS-863U-RP provides versatile all-in-one server functionalities as well as unique features including Virtualization Station, which allows users to run VMs on the same device. The TS-863U-RP is designed for small and medium-sized businesses looking for backup, restoration, private cloud, storage for virtualization, and to future-proof their IT infrastructure for 10GbE networks.

  • 10GbE-ready, highly-efficient storage solution for HD video editing and sharing
  • Hot-swappable redundant power supplies to ensure maximum system uptime
  • Hardware-accelerated encryption engine for efficient cryptographic performance exceeding 800 MB/s
  • Run multiple Windows®/Linux®/UNIX®/Android™ based virtual machines with the Virtualization Station
  • Manage, share, and back up business data with Real-time Remote Replication (RTRR)
  • NAS and iSCSI-SAN (IP-SAN) unified storage solution for server virtualization
  • Supports VMware®, Citrix®, and Microsoft® Hyper-V™ and advanced virtualization features
  • Scale up to 20 drives with a QNAP UX-1200U-RP expansion enclosure



Quad-core 64-bit AMD 2.0GHz

Flash Memory

512MB (DOM)

Memory (RAM)

4GB DDR3L (4GB x 1)

Number of RAM Slots

2 (Max 16GB, SO-DIMM DDR3L)

Note: For the information of RAM module installation and compatible NAS models, please refer to the QNAP RAM Module Installation Guide.

Max. number of HDDs/SSDs

8 x 2.5″ or 3.5″ SATA 6Gb/s, 3Gb/s

1. The system is shipped without HDD.
2. For the HDD compatibility list, please visit

Hard Disk Tray

8 x Hot-swappable tray

Expansion Enclosure Support

1 (UX-1200U-RP, UX-800U-RP)

Gigabit LAN Ports



1 x SFP+

Expansion Slot (PCI-E)

1 (pre-installed SFP+ NIC)

USB 2.0


USB 3.0


LED Indicators

HDD 1-8, Status, LAN, USB, Power


Power, Reset

System Fan

2 x 70mm, 12V DC

Form Factor

2U Rackmount

Dimensions (HxWxD) mm

89(H) x 482(W) x 534(D) mm
3.5(H) x 18.98(W) x 21.02(D) inch

Weight (Net/ Gross)

11.02 kg (24.29 lbs.) / 19.26 kg (42.46 lbs.)


0 – 40 °C


5 – 95% R.H

Power Supply Specification

Redundant 250W, Input: 110-240 Vac~, 50-60Hz, 5A

Power Consumption: (W)

HDD Sleep Mode: 51.29 (w/ 10GbE NIC)
In Operation: 107.30 (w/ 10GbE NIC)


Operating System

QTS 4.2 (embedded Linux)

File System

  1. Internal Hard Drive: EXT4

  2. External Hard Drive: EXT3, EXT4, NTFS, FAT32, HFS+

Supported Client OS

  1. Windows 7 (32/64-bit), Windows 8 (32/64-bit), Windows Server 2003/2008 R2/2012/2012R2

  2. Apple Mac OS X

  3. Linux & UNIX

Power Management

  1. Wake on LAN

  2. Internal hard drive standby mode

  3. Scheduled power on/off

  4. Automatic power on after power recovery

  5. USB and network UPS support with SNMP management

Supported Browsers

  1. Microsoft Internet Explorer 10+

  2. Mozilla Firefox 8+

  3. Apple Safari 4+

  4. Google Chrome

Access Right Management

  1. Batch users creation

  2. Import/Export users

  3. User quota management

  4. Local user access control for CIFS, AFP, FTP, and WebDAV

  5. Application access control for Photo Station, Music Station, Video Station, and File Station

  6. Subfolder permissions support for CIFS/SMB, AFP, FTP, and File Station

Multilingual Support

  1. Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish

Domain Authentication Integration

  1. Microsoft Active Directory (AD) & Domain Controller support

  2. LDAP server, LDAP client

  3. Domain users login via CIFS/SMB, AFP, FTP, and File Station

Storage Management

  1. QNAP flexible Volume/LUN with thin provisioning and space reclaim

  2. RAID 0, 1, 5, 6, 10, + hot spare*

  3. Supports storage pools

  4. Supports snapshots

    1. Supports Volume/LUN snapshot

    2. Snapshot manager

    3. Snapshot clone

    4. Snapshot vault

    5. Snapshot replica

    6. Snapshot agent for Windows VSS and VMware

  5. Online volume expansion

  6. Online storage pool expansion

  7. Online RAID capacity expansion and online RAID level migration

  8. SMART data migration

  9. Storage expansion via a QNAP UX-1200U-RP/UX-800U-RP expansion unit

  10. JBOD enclosure roaming

  11. SSD read-only/read-write cache

  12. Bad block scan and hard drive S.M.A.R.T.

  13. Bad block recovery

  14. RAID recovery

  15. Bitmap support

* This feature may vary by model.

myQNAPcloud Service

  1. Private cloud storage and sharing

  2. Free host name registration (DDNS)

  3. Supports myQNAPcloud SSL certificates (paid service)

  4. Auto router configuration (via UPnP)

  5. Web-based file manager with HTTPS 2048-bit encryption

  6. CloudLink for remote access without any complicated router setup

  7. myQNAPcloud connect for easy VPN connection (Windows VPN utility)


  1. TCP/IP (IPv4 & IPv6: Dual Stack)*

  2. Quad Gigabit NICs with jumbo frame (failover, multi-IP settings, port trunking/NIC teaming)

  3. Service binding based on network interfaces

  4. Squid Proxy server

  5. Proxy client

  6. DHCP client, DHCP server

  7. Protocols: CIFS/SMB, AFP (v3.3), NFS (v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, and SMSC

  8. UPnP & Bonjour Discovery

  9. USB Wi-Fi Adapter Support

* Not all services are supported.


  1. Syncs files across multiple devices with SSL support

  2. Selective synchronization for only syncing specific folders

  3. Use team folders as a file center for greater team collaboration (maximum sync tasks: 32)

  4. Shares files by links via e-mail

  5. Policy settings for conflicting files and file type filter support

  6. Version control: up to 64 versions.

  7. Incremental synchronization for HDD space saving

  8. Unified privilege management

  9. Unified configuration management

  10. Supports central configuration mode

  11. Supports remote erase / restore

  12. Supports shared folders sync

  13. Supports Windows & Mac OS


  1. Network access protection with auto-blocking: SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP

  2. CIFS host access control for shared folders

  3. FIPS 140-2 validated AES 256-bit volume-based and shared folder data encryption*

  4. AES 256-bit external drive encryption*

  5. Importable SSL certificates

  6. Instant alert via E-mail, SMS, beep, and push service

  7. 2-step verification

* Data encryption functions may be unavailable in accordance with the legislative restrictions of some countries.

Web Administration

  1. Smart toolbar and dashboard for neat system status display

  2. Smart fan Control

  3. Dynamic DNS (DDNS)

  4. SNMP (v2 & v3)

  5. Resource monitor

  6. Network recycle bin for file deletion via CIFS/SMB, AFP, and File Station

    1. Automatic Cleanup

    2. File Type Filter

  7. Comprehensive logs (events & connection)

  8. Syslog client/server

  9. System settings backup and restore

  10. Mobile app: Qmanager for remote system monitoring & management

Powerful All-in-one server

File Server

  1. File sharing across Windows, Mac, and Linux/UNIX

  2. Windows ACL

  3. Advanced folder permissions for CIFS/SMB, AFP, FTP

  4. Shared folder aggregation (CIFS/SMB)

Storage Plug & Connect

  1. Creating and mapping shared folders by QNAP Windows Qfinder

  2. Creation of and connection to iSCSI target/LUN

FTP Server

  1. FTP over SSL/TLS (Explicit)

  2. FXP support

  3. Passive ftp port range control


  1. iSCSI target with multi-LUNs per target (Up to 256 targets/LUNs combined)

  2. Supports LUN mapping & masking

  3. Online LUN capacity expansion

  4. Support for SPC-3 persistent reservation

  5. Supports MPIO & MC/S

  6. iSCSI LUN backup, one-time snapshot, and restoration

  7. iSCSI connection and management by QNAP Windows Qfinder

  8. Virtual disk drive (via iSCSI initiator)

  9. Stack chaining master

  10. Max No. of virtual disk drives: 8

File Station

  1. Supports mounting a Cloud Drive (such as Google Drive, Dropbox, Microsoft OneDrive, Amazon Cloud Drive, Yandex Disk and Box)

  2. Supports mounting remote shared folders through FTP, WebDAV or Microsoft networking (SMB/CIFS)

  3. Supports opening documents via Office Online, Google Docs or Chrome Extension (Edit Office files in Google Docs, Sheets, and Slides)

  4. Supports ISO Mounting (Up to 256 ISO Files)

  5. Supports thumbnail display of multimedia files

  6. Supports sharing download links and upload links

  7. Supports sharing to other NAS users

  8. Drag-n-drop Files via Chrome and Firefox Browsers

  9. Photo, music, and video preview and playback

  10. File Compression (ZIP or 7z)

  11. Supports displaying subtitles (*.SRT, UTF-8 format)

  12. Mobile App: Qfile for file browsing and management

Surveillance Station

  1. Supports over 3,000 IP cameras

  2. Includes 4 free camera licenses, up to 40 camera channels via additional license purchase

  3. Instant playback to check recent events

  4. Online editing to edit cameras during live view

  5. Visual aid by e-map

  6. Playback and speed control using the shuttle bar

  7. Video preview on playback timeline

  8. Intelligent video analytics (IVA) for advanced video searching

  9. Surveillance client for Mac

  10. Mobile surveillance app: Vmobile (iOS and Android)

  11. Mobile recording app: Vcam (iOS and Android)

Backup Station

  1. Remote replication server (over rsync)

  2. Real-time remote replication (RTRR) to another QNAP NAS or FTP server

  3. Works as both RTRR server & client with bandwidth control

  4. Real-time & scheduled backup

  5. Backup versioning for RTRR

  6. Snapshot support for RTRR/rsync

  7. Encryption, compression, file filter, and transfer rate limitation

  8. Encrypted replication between QNAP NAS servers

  9. Desktop backup with QNAP NetBak Replicator for Windows

  10. Apple Time Machine backup support

  11. Data backup to multiple external storage devices

  12. Synchronizes with cloud storage: Amazon S3, ElephantDrive, Symform, Dropbox, and Google Drive

  13. Third party backup software support: Veeam backup & replication, Acronis True Image, Arcserve backup, emc retrospect, Symantec Backup Exec, etc.

VPN Server

  1. Secure remote access: PPTPL2TP/IPsec & OpenVPN VPN services

  2. Max number of clients: 30


Print Server

  1. Max number of printers: 3

  2. Supports Internet Printing Protocol

  3. Print job display and management

  4. IP-based and domain name-based privilege control

VPN Client

  1. Supported VPN protocols: PPTP & OpenVPN services

  2. PPTP Authentication: PAP, CHAP, MS-CHAP, MS-CHAPv2

  3. PPTP Encryption: None, AES 40/128 bit, AES 256 bit

  4. OpenVPN Encryption: None, AES 40/128 bit, AES 256 bit

  5. Transmission package monitor

  6. OpenVPN port control

  7. OpenVPN link compression

iTunes Server

  1. Audio and video sharing for Windows & Mac iTunes

DLNA Server

  1. Supports DLNA/UPnP TVs and players such as PlayStation 4 and Xbox One

  2. Support CUE indexing file for APE, FLAC audio format.

*DRM-protected content is not supported.

Cloud Backup Station

  1. Amazon S3

  2. Amazon Glacier

  3. WebDAV-based cloud storage

  4. Microsoft Azure

  5. OpenStack

Q’center (NAS CMS)

  1. Multiple NAS monitoring

  2. Utilization history reports

  3. Unified configuration management

  4. Visual display reports

  5. Monitor NAS behind NAT router with Q’center Assistant

  6. Virtual appliances supported for Hyper-V and VMware

AirPlay & Chromecast

  1. Streams videos, photos and music from NAS to Apple TV via Qfile or QAirplay&Chromecast

  2. Streams videos, photos and music from NAS to TV with Chromecast via Qfile, Qvideo or QAirplay&Chromecast

App Center

  1. Over 100 official and community software add-ons (Photo Station, Music Station, Video Station, Download Station, Notes Station, Signage Station, Dropbox, Google Drive Sync, McAfee, WordPress, HappyGet II, Gmail Backup, and more.)

Virtualization Station

  1. Supports Virtual Machine (VM) creation to run operating systems such as Windows, Linux, Unix and Android

  2. Supports VM import and export

  3. Supports VM cloning

  4. Supports VM snapshots

  5. Supports VM backup and restore

  6. VM console can be displayed via HDMI output – QVM

  7. HTML5-based shared remote console

Designs and specifications are subject to change without notice.
