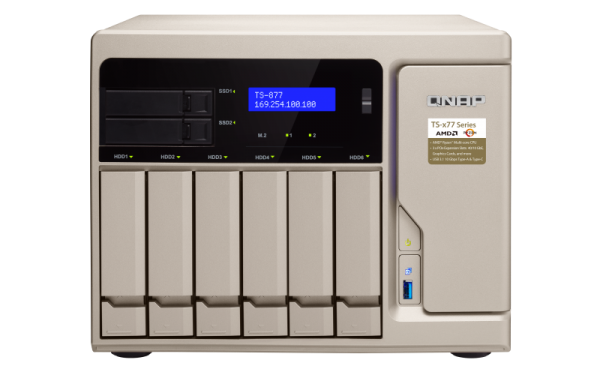

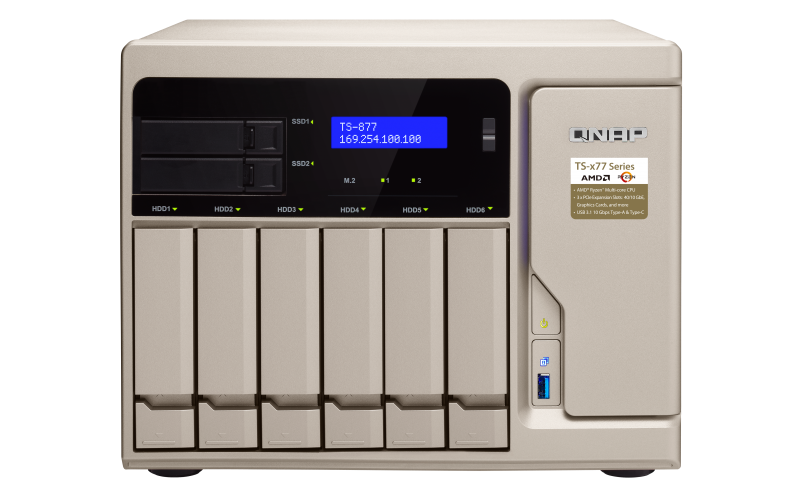

TS-877
The first Ryzen™-based NAS with up to 8 cores and 16 threads and graphics card support to redefine your virtualization and 4K processing experiences
The TS-877 powered by AMD’s new 14nm Ryzen™ processor redefines the high-end desktop business NAS for greater video and virtual machine performance with up to 8 cores/16 threads native processing and Turbo Core up to 3.7 GHz. Cutting-edge hardware integrated with multitasking software makes the TS-877 the preeminent choice to tackle resource-demanding applications and tasks.
-
Two M.2 SATA 6Gb/s SSD slots for caching or caching pools to accelerate system performance.
-
PCIe expandability allows for 10GbE/40GbE adapters, PCIe NVMe SSD, graphics cards, USB 3.1 10Gbps cards, or wireless network cards.
-
Supports AMD Radeon™ and NVIDIA® graphics cards for video processing or GPU-passthrough to VMs.
-
Qtier™ technology and SSD caching enable 24/7 optimized storage efficiency.
-
Scalable storage supporting virtualization, containerized apps, centralized storage, backup, sharing, and disaster recovery.
-
RAID 50/60 is recommended for NAS with over 10 disks to strike a balance between capacity, protection, and performance.
Available Models
-
TS-877-1700-16G
AMD Ryzen™ 7 1700 8 cores/16 threads 3.0 GHz processor (Turbo Core 3.7 GHz), 16 GB RAM
-
TS-877-1600-8G
AMD Ryzen™ 5 1600 6 cores/12 threads 3.2 GHz processor (Turbo Core 3.6 GHz), 8 GB RAM
Specification
| CPU | Processor: AMD Ryzen™ 7 1700 8-core/16-thread 3.0 GHz processor, Turbo Core 3.7 GHz Architecture: 64-bit Graphics: Optional (with PCIe expansion card) Encryption Engine: AES-NI |
| System Memory | 16 GB DDR4 (2 x 8 GB) (TS-877-1700-16G)
8 GB DDR4 (2 x 4 GB) (TS-877-1700-8G) |
| Maximum Memory | 64 GB (4 x 16 GB) |
| Memory Slot | 4 x UDIMM DDR4 (For dual- or quad-DIMM configurations, you must use a pair of identical DDR4 modules.) |
| Flash Memory | 5GB (DOM for dual OS) |
| Drive Bay | 6 x 3.5-inch SATA 6 Gbps bays 2 x 2.5-inch SATA 6 Gbps bays, max 9.5mm drive height |
| Drive Compatibility | 3.5-inch bays: • 3.5-inch SATA hard disk drives • 2.5-inch SATA hard disk drives • 2.5-inch SATA solid state drives 2.5-inch bays: |
| M.2 SSD Slot | 2 x M.2 2240/2260/2280/22110 SATA 6Gb/s SSDs
Note: |
| SSD Cache Acceleration Support | • 3.5-inch drive bays 1 to 6 • 2.5-inch drive bays 1 to 2 • M.2 slots 1 to 2 • Optional: SSD using PCIe expansion slot |
| Hot-swappable | Yes The following are not hot-swappable: M.2 SSDs, SSD cache drives, SSDs using PCIe expansion slots. |
| 10 Gigabit Ethernet Port | Optional: With PCIe expansion card |
| Gigabit Ethernet Port | 4 x RJ45 |
| PCIe Slot | 1 x PCIe 3.0 x8 1 x PCIe 3.0 x4 1 x PCIe 2.0 x4 |
| USB Port | 2 x USB 3.1 10 Gbps • Back: 1 x USB 3.1 10 Gbps Type-C • Back: 1 x USB 3.1 10 Gbps Type-A 6 x USB 3.0 |
| HDMI Output | Optional: With PCIe expansion card |
| Audio | • 2 x 3.5 mm dynamic microphone jacks • 1 x 3.5 mm line-out jack • 2 x speakers Note: You cannot use the speakers and the line-out jack simultaneously. |
| IR sensor | Yes Note: Requires an optional graphics card and RM-IR004 remote control |
| Display Panel | Monochrome backlit LCD display with Enter and Select buttons |
| USB One Touch Copy | Front: USB 3.0 Type-A |
| Form Factor | Tower |
| Dimensions (H x W x D) | 231.9 x 292.8 x 319.8 mm 9.13 x 11.53 x 12.59 inch |
| Net Weight | 8.86 kg (19.53 lbs) Shipping: 10.69 kg (23.57 lbs) |
| Power Supply Unit | 450W, 100-240V AC, 50/60Hz |
| Fan | System: 2 x 80 mm CPU: 2 x 90 mm |
| Operating Temperature & Relative Humidity | 0 ~ 40˚C ( 32˚F ~ 104˚F ), 5 ~ 95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Security Slot | Kensington security slot |
