Slim & Big: 9-bay hybrid NAS supporting 3.5” & 2.5” drives with dual 10GbE ports

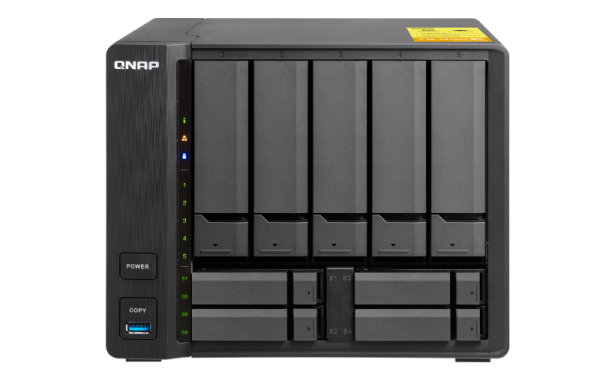

The business-class TS-932X is a budget-friendly NAS designed to accommodate five 3.5-inch hard drives and four 2.5-inch SSDs. It is also the first ARM-based NAS that supports Qtier™ technology for efficient auto-tiered storage. As a 9-bay NAS, the compact TS-932X takes up less desktop space compared with other models in the same class, and presents a stylish control panel embellished with brushed-metal aluminum. Featuring dual 10GbE SFP+ ports, the TS-932X provides an excellent blend of speed and affordability to future-proof your IT infrastructure for 10GbE networks.
-
Dual 10GbE SFP+ ports for accelerating virtualization and massive file sharing.
-
Qtier™ technology and SSD caching enable 24/7 optimized storage efficiency.
-
Snapshots fully record system status and data, allowing you to protect files and data from accidental deletion and malware attacks.
-
Supports LXC and Docker® containers for rapidly deploying application services across platforms including the cloud, servers, and PCs.
-
Secure private cloud supporting centralized storage, backup, sharing, and disaster recovery.
-
NAS and iSCSI-SAN (IP-SAN) unified storage solution with a scalable design.
Available Models
TS-932X-2G
AnnapurnaLabs, an Amazon company Alpine AL-324 quad-core 1.7GHz processor, 2 GB RAM
TS-932X-8G
AnnapurnaLabs, an Amazon company Alpine AL-324 quad-core 1.7GHz processor, 8 GB RAM
| CPU | AnnapurnaLabs Alpine AL-324 ARM® Cortex-A57 quad-core 1.7GHz processor | |
| CPU Architecture | 64-bit ARM | |
| Floating Point Unit | ||
| Encryption Engine | ||
| System Memory |
or 8 GB SODIMM DDR4 (1 x 8GB) |
|
| Maximum Memory | 16 GB (1 x 16 GB) | |
| Memory Slot | 1 x SO-DIMM DDR4 | |
| Flash Memory | 512 MB (Dual boot OS protection) | |
| Drive Bay | 5x 3.5-inch+ 4 x 2.5-inch | |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives 2.5-inch bays: |
|
| Hot-swappable | ||
| Gigabit Ethernet Port (RJ45) | 2 | |
| 10 Gigabit Ethernet Port | 2 x 10G SFP+ | |
| Jumbo Frame | ||
| USB 3.0 port | 3 | |
| Audio Output | 1 x Built-in speaker, 1 x 3.5mm line out jack
You cannot use the speakers and the line-out jack simultaneously.
|
|
| Form Factor | Tower | |
| LED Indicators | System Status, LAN, USB, HDD1~5, SSD1-4 | |
| Buttons | Power, Reset, USB Copy | |
| Dimensions (HxWxD) | 224.7 × 182.7 × 223.6 mm | |
| Weight (Net) | 3.53 kg | |
| Weight (Gross) | 5.06 kg | |
| Operating temperature | 0 – 40 °C (32°F – 104°F) | |
| Relative Humidity | 5~95% RH non-condensing, wet bulb: 27˚C (80.6˚F) | |
| Power Supply Unit | External, 120 W, AC 100 to 240 V | |
| Power Consumption: HDD Sleep Mode | 21.66 W | |
| Power Consumption: Operating Mode, Typical | 42.15 W
With 5 x HDD + 4 x SSD fully populated
|
|
| Fan | 1 x 14cm smart Fan (12V DC) | |
| Sound Level | 18.7 db(A) | |
| System Warning | Voice prompts or Buzzer | |
| Kensington Security Slot |
