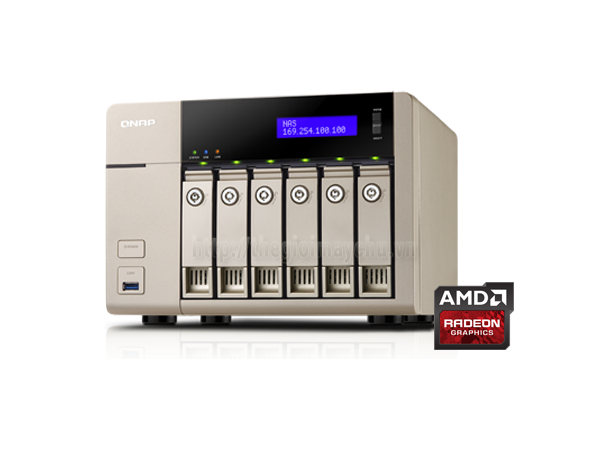

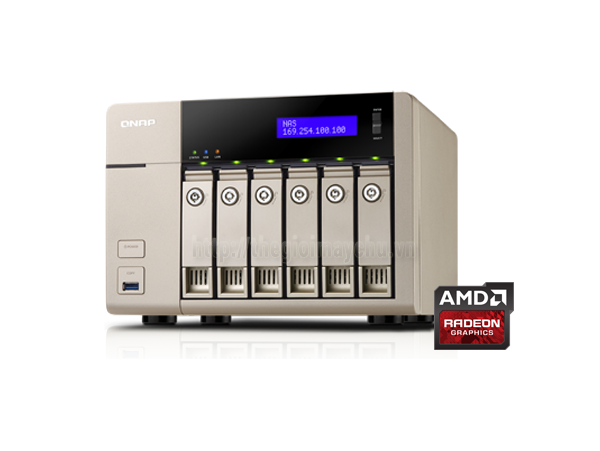

Thiết bị lưu trữ QNAP TVS-663-4G

QNAP TVS-663 4G, Nas Qnap, Nas Qnap SMB, QNAP STORAGE

SKU: TM111
Category:

Giá tham khảo:

Features
Adorned with a box in gold color, the sophisticated TVS-663, featuring the easy-to-use QTS operating system, is a powerful, reliable, secure and scalable NAS solution designed for mission-critical and intensive business applications and to meet fast growing data storage needs. The TVS-663 supports 10GbE via optional PCI-E network expansion and delivers high performance with persistent throughput, providing a comprehensive storage solution for SMBs to build a reliable private cloud.

  • 10GbE-ready, highly-efficient storage solution for HD video editing and sharing
  • Enhanced data security with a high-performance hardware-accelerated encryption engine with AES 256-bit full NAS volume encryption and anti-virus
  • Use the TVS-663 as a PC with exclusive QvPC Technology and 4K display support
  • Run multiple Windows/Linux/Android-based virtual machines with the Virtualization Station
  • Manage, share, and back up business data with Real-time Remote Replication (RTRR)
  • NAS and iSCSI-SAN unified storage solution for server virtualization
  • Supports VMware®, Citrix®, and Microsoft® Hyper-V and advanced virtualization features
  • Transcode Full HD videos on-the-fly or offline with QNAP’s unique transcoding technology and hardware transcoding engine
  • Expand the total raw storage capacity up to 176TB with the economical UX-800P QNAP expansion enclosures


Hardware Spec.

CPU AMD® 2.4GHz quad-core x86 processor with Radeon™ graphics
DRAM

TVS-663-4G: 4GB DDR3L-1600 x 1
TVS-663-8G: 8GB DDR3L-1600 x 1

Total memory slots: 2
Memory expandable up to: 16 GB (8GB x2)

NOTE: For the information of RAM module installation and compatible NAS models, please refer to the QNAP RAM Module Installation Guide.

Flash Memory 512MB DOM
Hard Disk Drive 6 x 3.5”or 2.5”SATA 6Gb/s, SATA 3Gb/s hard drive or SSD
NOTE:
1. The system is shipped without HDD.
2. For the HDD compatibility list, please visit www.qnap.com/compatibility
Hard Drive Tray 6 x Hot-swappable tray
LAN Port

2 x Gigabit RJ-45 Ethernet port (Onboard:2, expandable to max 4 ports via PCI-E NIC)

PCIe Slot 1 (PCIe Gen2 x 4)
LCD Panel

Mono-LCD display with backlight, Enter and Select buttons for configuration

LED Indicators Status, LAN, USB, HDD 1-6
USB 5 x USB 3.0 port (Front: 1, Rear: 4)
Support USB printer, pen drive, and USB UPS etc.
HDMI 2 (Mirrored Display), 1.4a
Note: 4K video playback and transcoding are not supported
Buttons Power/Status, USB One-Touch-Backup, reset
Alarm Buzzer System warning
IR Receiver

QNAP RM-IR002 and MCE-compatible remotes

Form Factor

Tower

Dimensions

185(H)x260.2(W) x 235.5(D) mm
7.28(H) x 10.24(W) x 9.27(D) inch

Weight Net: 6.18 kg (13.62lbs)
Gross: 6.9 kg (15.21lbs)
Power Consumption(W) S3 sleep: 2.19W
HDD standby: 41.56W
In operation: 58.81W
(with 6 x 2TB HDDs installed)
Temperature 0-40˚C
Humidity 5~95% RH non-condensing, wet bulb: 27˚C
Power Supply ATX 250W, 110-240V AC, 50-60Hz, 5A
Secure Design Kensington security slot for theft prevention
Fan 2 x quiet cooling fan (9cm, 12V DC)



Software spec.

Operating System
QTS 4.1 (embedded Linux)
Storage Management
  1. QNAP flexible Volume/LUN with thin provisioning and space reclaim
  2. RAID 0,1, 5, 6, 10, 5/6/10 + hot spares
  3. Supports storage pool
  4. Online volume expansion
  5. Online storage pool expansion
  6. Online RAID capacity expansion and online RAID level migration
  7. SMART data migration
  8. Storage expansion via QNAP UX-500P/UX-800P expansion units
  9. Bad block scan and hard drive S.M.A.R.T.
  10. Bad block recovery
  11. RAID recovery
  12. Bitmap support
Supported Client OS
  1. Windows XP, Vista, Windows 7 (32/64-bit), Windows 8 (32/64-bit), Windows Server 2003/2008 R2/2012
  2. Apple Mac OS X
  3. Linux & UNIX
Power Management
  1. Wake on LAN
  2. Internal hard drive standby mode
  3. Scheduled power on/off
  4. Automatic power on after power recovery
  5. USB and network UPS support with SNMP management
  6. System sleep mode (S3)
Supported Browsers
  1. Microsoft Internet Explorer 10+
  2. Mozilla Firefox 8+
  3. Apple Safari 4+
  4. Google Chrome
Access Right Management
  1. Access Right Management
  2. Import/export users
  3. User quota management
  4. Local user access control for CIFS, AFP, FTP, and WebDAV
  5. Application access control for Photo Station, Music Station, Video Station, and File Station
  6. Subfolder permissions support for CIFS/SMB, AFP, FTP, and File Station
Multilingual Support
  1. Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish
myQNAPcloud Service
  1. Private cloud storage and sharing
  2. Free host name registration (DDNS)
  3. Auto router configuration (via UPnP)
  4. Web-based file manager with HTTPS 2048-bit encryption
  5. CloudLink for remote access without complicated router setup
  6. myQNAPcloud connect for easy VPN connection (Windows VPN utility)
File System
  1. Internal Hard Drive: EXT4
  2. External Hard Drive: EXT3, EXT4, NTFS, FAT32, HFS+
Qsync
  1. Syncs files among multiple devices with SSL support
  2. Selective synchronization for syncing specific folders only
  3. Share team folder as a file center for team collaboration (Maximum sync tasks: 32)
  4. Shares files by links via email
  5. Policy settings for conflicted files and file type filter support
  6. Version control: up to 64 versions.
  7. Incremental synchronization for HDD space saving
  8. Supports Windows & Mac OS
Networking
  1. TCP/IP (IPv4 & IPv6: Dual Stack) ♯
  2. Dual Gigabit NICs with jumbo frame (failover, multi-IP settings, port trunking/NIC teaming)
  3. Service binding based on network interfaces
  4. Proxy server (Squid available in App Center)
  5. Proxy client
  6. DHCP client, DHCP server
  7. Protocols: CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, and SMSC
  8. UPnP & Bonjour Discovery
  9. USB Wi-Fi 802.11ac adapter support

♯ Not all IPv6 services are supported.

Web Administration
  1. Multi-window, multi-tasking based system management
  2. Smart toolbar and dashboard for neat system status display
  3. Dynamic DNS (DDNS)
  4. SNMP (v2 & v3)
  5. Resource monitor
  6. Network recycle bin for file deletion via CIFS/SMB, AFP, and File Station
    • Automatic cleanup
    • File type filter
  7. Comprehensive logs (events & connection)
  8. Syslog client/server
  9. System settings backup and restore
  10. Mobile app: Qmanager for remote system monitoring & management
Security
  1. Network access protection with auto-blocking: SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP
  2. CIFS host access control for shared folders
  3. FIPS 140-2 validated AES 256-bit volume-based data encryption*
  4. AES 256-bit external drive encryption*
  5. Importable SSL certificates
  6. Instant alert via email, SMS, beep, and LCD panel
Domain Authentication Integration
  1. Microsoft Active Directory (AD) & Domain Controller support
  2. LDAP server, LDAP client
  3. Domain users login via CIFS/SMB, AFP, FTP, and File Station
Powerful All-in-one server
File Server
  1. File Sharing across Windows, Mac, and Linux/UNIX
  2. Windows ACL
  3. Advanced folder permission for CIFS/SMB, AFP, FTP
  4. Shared Folder Aggregation (CIFS/SMB)
VPN Server
  1. Secure remote access: PPTP & OpenVPN VPN services
  2. Max number of clients: 30



FTP Server
  1. FTP over SSL/TLS (Explicit)
  2. FXP supported
  3. Passive ftp port range control
VPN Client
  1. Supported VPN protocols: PPTP & OpenVPN services
  2. PPTP authentication: PAP, CHAP, MS-CHAP, MS-CHAPv2
  3. PPTP encryption: None, AES 40/128 bit, AES 256 bit
  4. OpenVPN encryption: None, AES 40/128 bit, AES 256 bit
  5. Transmission package monitor
  6. OpenVPN port control
  7. OpenVPN link compression
File Station
  1. Supports ISO Mounting (Up to 256 ISO Files)
  2. Supports thumbnail display of multimedia files
  3. Supports sharing download links and upload links
  4. Drag-n-drop files via Google Chrome and Mozilla Firefox
  5. Photo, music, and video preview and playback with hardware-accelerated transcoding
  6. File compression (ZIP or 7z)
  7. Creation of and sending download links for sharing public files with expiration time and password protection
  8. Support for displaying subtitles (.SRT, UTF-8 format)
    • Video seeking support for video playback during on-the-fly transcoding
    • Support slideshow playback in media viewer
  9. Mobile App: Qfile for file browsing and management
HD (HybridDesk) Station
  1. Playback videos, music, photos on yout TV with Kodi via HDMI output
  2. Watch various online contents such as YouTube, Flickr, Picasa, Shoutcast, and more.
  3. Web browser (Chrome, Firefox)
  4. Supports USB keyboard and mouse
  5. Supports QNAP Qremote app and the official Kodi remote app
  6. Supports user login permissions

Note:
– The playback and quality of some video files may be affected due to the CPU and GPU decoding abilities.
– Up to 7.1 channel audio passthrough is supported
– 4K video playback and transcoding are not supported

Backup Station
  1. Remote replication server (over rsync)
  2. Real-time remote replication (RTRR) to another QNAP NAS or FTP server
  3. Works as both RTRR server & client with bandwidth control
  4. Real-time & scheduled backup
  5. Encryption, compression, file filters, and transfer rate limitations
  6. Encrypted replication between QNAP NAS servers
  7. Desktop backup with QNAP NetBak Replicator for Windows
  8. Apple Time Machine backup support
  9. Data backup to multiple external storage devices
  10. Synchronizes with cloud storage: Amazon S3, ElephantDrive, Dropbox, and Google Cloud Storage
  11. Third party backup software support: Veeam backup & replication, Acronis True Image, Arcserve backup, emc retrospect, Symantec Backup Exec, etc.
Transcode Management
  1. Transcode 1080p video files to 240p, 360p, 480p, and 720p resolutions
  2. Automatic video transcoding for watched folders
  3. Hardware-accelerated transcoding support
  4. Embed subtitles with videos in background transcoding
Cloud Storage Backup
  1. Amazon S3
  2. Amazon Glacier
  3. Webdev-based cloud storage
  4. Microsoft Azure
  5. Open Stack



Print Server
  1. Max. number of printers: 3
  2. Support for Internet Printing Protocol
  3. Print job display and management
  4. IP-based and domain name-based privilege control
Storage Plug & Connect
  1. Creating and mapping shared folders using QNAP Windows® Qfinder
  2. Creation of and connection to iSCSI targets/LUN
Signage Station
  1. Supports dynamic content including videos, images, music, and text messages
  2. Supports multi-user collaboration
  3. Supports searching via keywords
  4. Supports sharing via email and social networks
  5. Supports design software – iArtist Lite
  6. Supports account authority management
  7. Supports various web browsers for playback (Chrome, Firefox, IE, Safari)
  8. Supports most-viewed, latest-released and different categories content list
iSCSI (IP SAN)
  1. iSCSI target with multi-LUNs per target (Up to 256 targets/LUNs combined)
  2. Support for LUN mapping & masking
  3. Online LUN capacity expansion
  4. Support for SPC-3 persistent reservation
  5. Support for MPIO & MC/S
  6. iSCSI LUN backup, one-time snapshot, and restoration
  7. iSCSI connection and management by QNAP Windows® Qfinder
  8. Virtual disk drive (via iSCSI initiator)
  9. Stack chaining master
  10. Max No. of virtual disk drives: 8
iTunes Server
  1. Audio and video sharing for Windows & Mac iTunes
Virtualization Station
  1. Supports creating one Virtual Machine (VM) to run an operating system such as Windows, Linux, Unix, and Android
  2. VM import from Virtual Appliances
  3. VM export into a virtual appliance in OVF / QVM format
  4. VM clone
  5. VM snapshot
  6. HTML5-based shared remote console
AirPlay & Chromecast
  1. Streams videos, photos and music from the NAS to Apple TV via Qfile or QAirPlay&Chromecast’s web-based controller
  2. Streams videos, photos and music from the NAS to TV with a Chromecast dongle via Qfile , Qvideo or QAirPlay&Chromecast’s web-based controller



Surveillance Station
  1. Supports over 2,700 IP cameras
  2. Includes 4 free camera licenses, up to 40 camera channels via additional license purchase
  3. Instant playback to check recent events
  4. Online editing to change cameras when in live view
  5. Visual aid by using e-maps
  6. Playback and speed control by shuttle bar
  7. Video preview using playback timeline
  8. Intelligent Video Analytics (IVA) for advanced video search
  9. Surveillance client for Mac
  10. Mobile surveillance app: Vmobile (iOS and Android)
  11. Mobile recording app: Vcam (iOS and Android)
Notes Station
  1. Take notes everywhere you go with a handy Note-taking tool on your private cloud.
  2. Direct and quick backup from Evernote with re-editing abilities
  3. Supports Google Calendar
  4. Import/Export PDF files
  5. Encrypt/decrypt notes to protect private/confidential information
  6. Smart snapshot for version control
  7. Multi-user note collaboration
  8. Supports a graphical editor for note editing
  9. Three-tier Note structure for easy organization
  10. Provides Chrome Extension: Notes Station Clipper (Clip web page content to your notes)
DLNA Server
  1. Supports DLNA/UPnP TVs and players such as PlayStation 3 and Xbox 360
  2. Supported audio formats: AIFF, APE, DSD (DSF, DFF), FLAC, M4A, M4A Apple Lossless (ALAC), MP3, Ogg Vorbis, WAV (PCM, LPCM), WMA, WMA PRO, WMA VBR*
  3. Support CUE indexing files for APE, FLAC audio format.
  4. Video and audio on-the-fly transcoding

*DRM-protected files are not supported.

App Center
  1. Over 100 official and community software add-ons such as Photo Station, Music Station, Video Station, Download Station, Digital TV Station and HappyGet.

* Somedata encryption functions may not available in accordance with the legislative restrictions of some countries.
** This feature may vary according to different models.
Design and specifications are subject to change without notice.

Bạn cần tư vấn về giải pháp lưu trữ?
Hãy để lại thông tin, chuyên viên tư vấn sẽ liên hệ lại ngay.
1900 558879
