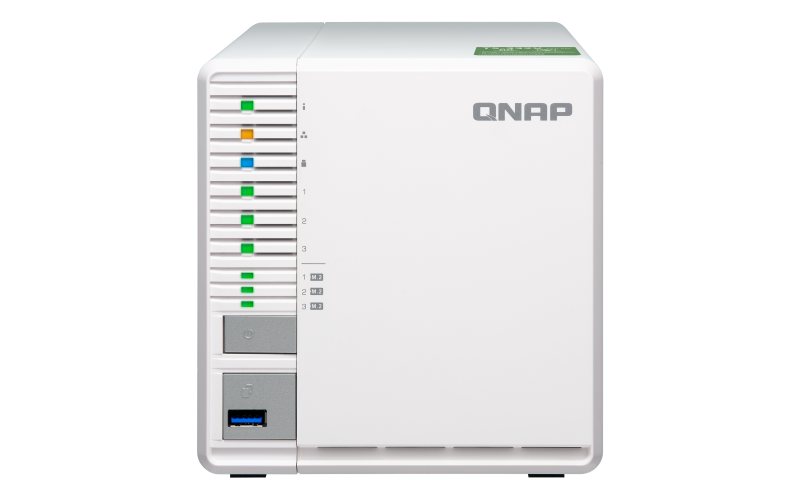

Thiết bị lưu trữ QNap TS-332X


Category:

Giá tham khảo:

Budget-friendly 10GbE NAS: A 3-bay NAS with three M.2 SSD slots, supporting RAID 5 for balancing capacity, performance, and protection



30% of QNAP users choose RAID 5 arrays for their NAS to provide higher data protection, better system performance and optimized storage utilization. The 3-bay TS-332X not only allows you to build a RAID 5 array on your NAS with the fewest disks, but also features a 10GbE SFP+ port and three M.2 SATA 6Gb/s SSD slots to enable higher performance for tackling performance-demanding operations. Featuring a minimalist design, the affordable 10GbE-ready TS-332X can easily fit your commercial space.

  • Build a secure RAID 5 array with three disks for optimized storage capacity and protection against one disk failing.

  • One built-in 10GbE SFP+ port for accelerating massive file sharing and intensive data transfer.

  • Qtier™ technology and SSD caching enable 24/7 optimized storage efficiency.

  • Snapshots fully record system status and data, allowing you to protect files and data from accidental deletion and malware attacks.

  • Supports LXC and Docker® containers for rapidly deploying application services across platforms including the cloud, servers, and PCs.

  • Secure private cloud supporting centralized storage, backup, sharing, and disaster recovery; a scalable storage solution.

Available Models

TS-332X-2G

AnnapurnaLabs, an Amazon company Alpine AL-324 quad-core 1.7GHz processor, 2 GB RAM



TS-332X-4G

AnnapurnaLabs, an Amazon company Alpine AL-324 quad-core 1.7GHz processor, 4 GB RAM



Specification



CPU AnnapurnaLabs, an Amazon company Alpine AL-324 Quad-core 1.7GHz ARM® Cortex-A57 Processor, 64-bit
Encryption Acceleration
System Memory 2 GB DDR4 2400 (1 x 2 GB) (TS-332X-2G)

4 GB DDR4 2400 (1 x 4 GB) (TS-332X-4G)

Maximum Memory 16 GB (1 x 16 GB)
Memory Slot 1 x SODIMM slot
Flash Memory 512 MB NAND Flash
Drive Bay Hot-swappable 3 x 3.5″/2.5″ SATA 6Gb/s HDD/SSDs (2.5″ tray base for installing 2.5″ HDD/SSD can be purchased from QNAP Online Shop)
M.2 SSD Slot 3 x M.2 2280 SATA 6 Gbps SSD

Note:
1. The M.2 SSD is not included as standard.
2. M.2 SSD operations can easily generate excessive heat. It is recommended to install a heatsink (from QNAP or a third-party provider) on the M.2 SSD.

10 Gigabit Ethernet Port 1 x 10GbE SFP+
Gigabit Ethernet Port 2 x Gigabit RJ45
USB Port USB 3.0 (Front: 1; Rear: 2)
Audio 1 x Built-in speaker
1 x 3.5mm line out jackNote: You cannot use the speakers and the line-out jack simultaneously.
LED Indicators Status/Power, LAN, USB, HDD 1-3, M.2 SSD 1-3
Buttons Power, Reset, USB One-touch-copy
System Warning Buzzer or Smart voice prompt
Form Factor Tower
Dimensions (H x W x D) 142 x 150 x 260.1 mm
5.59 x 5.9 x 10.24 inch
Power Consumption (W) HDD standby: 18.56 W
In operation: 26.22 W
(with 3 x HDDs and 3 x M.2 SSDs)HDD:WD10EFRX
M.2 SSD: RBU-SNS8152S3256GG2 256G
Sound Level Sound pressure (LpAm): 20.4 dB(A)
Weight Net weight: 1.64 kg (3.62 lbs)
Gross Weight: 2.69 kg (5.93 lbs)
Operating Temperature & Relative Humidity 0 ~ 40˚C (32˚F ~ 104˚F)
5~95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Security Slot Kensington security slot
Fan 1 x 14cm smart fan (12V DC)
Power Supply Unit 90W AC external adapter, 100-240V
