Thiết bị lưu trữ Qnap TS-253B-4G

SKU: TM3074

Giá tham khảo: 14,651,000

Mua tại
Hoặc Liên hệ tư vấn

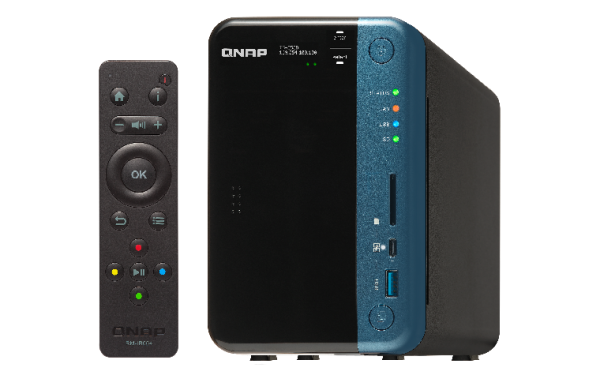

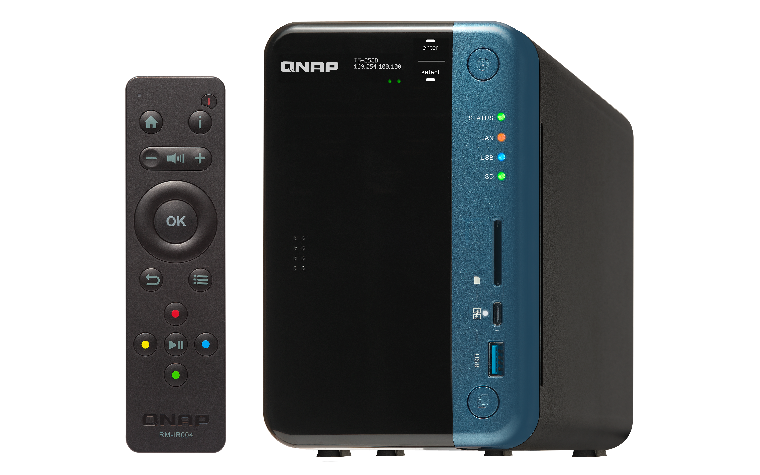

The TS-253B comes with a sleek new look, featuring an OLED panel and two capacitive touch buttons. The TS-253B also features a PCIe port for boosting the potential applications of your NAS: the QNAP QM2 expansion card can be installed for adding an M.2 SSD cache/10GbE connectivity, a compatible wireless card can be installed to use the TS-253B as a wireless access point, and a USB 3.1 10Gbps card can be added for easier backup to/from multiple external storage devices. With a USB Type-C QuickAccess port and a SD card slot, the TS-253B simplifies transferring and sharing files without needing a network connection. The TS-253B also provides feature-rich multimedia functionality, such as 4K video playback and real-time transcoding. The multi-zone multimedia management app Cinema28 and popular web automation app IFTTT Agent also enrich your multimedia experience and NAS automation.

PCIe port supports installing a QNAP QM2 dual-port M.2 SSD/10GbE connectivity, a compatible PCIe wireless adapter, or a USB 3.1 10Gbps card

USB QuickAccess port for direct access to files on NAS without needing a network connection

Supports virtualization, centralized storage, backup, sharing, and disaster recovery

A hybrid approach to virtualization in one NAS: Virtualization Station and Container Station

Supports 4K hardware decoding and transcodes 4K H.264 videos on-the-fly or offline

Cinema28 for centralized management of multimedia devices to enrich multimedia experiences

IFTTT Agent enables web automation for improved working efficiency

Specification

CPU Intel® Celeron® J3455 quad-core 1.5 GHz, up to 2.3 GHz
Encryption Accleration
✔ (AES-NI)
Graphics Intel® HD Graphics 500
System memory 8GB DDR3L
(2 x 4GB)
4GB DDR3L
(2 x 2GB)
Maximum Memory 8GB
Total Memory Slots 2 x DDR3L SODIMM slots
(For dual-DIMM configuration, you must use a pair of identical DDR3L modules.)
Drive Hot-swappable 2 x 3.5″/2.5″ SATA 6Gb/s HDD/SSD
GbE LAN Port 2 x RJ45 Gigabit LAN port
10GbE LAN Port Optional 10 Gigabit LAN port via a PCIe expansion card
USB 3.0 Port 5 x USB 3.0 Type-A ports
USB QuickAccess USB Type-C
PCIe Slot 1 PCIe 2.0 x2 slot
HDMI Port 2 x HDMI v1.4b, up to 3840 x 2160, 30 Hz
Audio Input 2 x 3.5mm microphone input jacks
Audio Output speaker, 3.5mm line out jack
Display 0.96” monochrome OLED
LED Indicators Status/Power, LAN, USB, Drives, SD card, USB QuickAccess
Buttons Power, USB copy, Reset, Capacitive touch buttons (select, enter)
Infrared Receiver ✔ supplied with a QNAP RM-IR004 remote control (compatible with RM-IR002 remote control)
SDXC Card Reader
Other Interfaces Kensington security slot
Dimension (HxWxD) 168 x 105 x 226 mm
6.61 x 4.13 x 8.90 inch
Weight 1.66 kg ( 3.66 lbs )
Sound Level* Operating low speed: 16.7 dB(A)
Operating Temperature 0 ~ 40˚C (32˚F ~ 104˚F)
Relative Humidity 5~95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Consumption HDD sleep: 13.07W
Typical Operation: 20.42W
Power Supply 65W AC adapter, 100-240V
Fan 1 x 7 cm
Package Contents NAS, QIG, 2 x RJ45 ethernet cables, AC adapter, power cord, 2.5″ drive screw kit, RM-IR004 remote control
