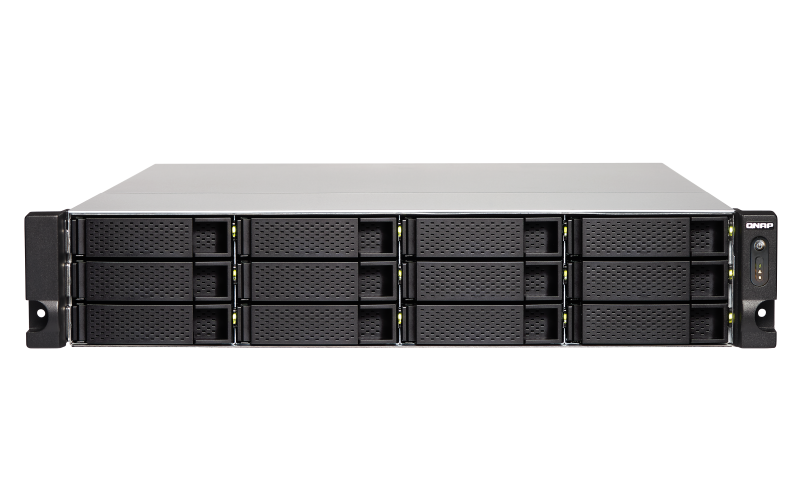

10GbE-ready, entry-level rackmount NAS for SMB featuring two SFP+ ports and one PCIe 2.0 ×2 slot
The TS-1232XU is built to deliver high performance, flexible expansion capabilities and versatile applications at an affordable and cost-effective price for small/medium-sized businesses. Two 10GbE SFP+ ports are capable of high-speed transmission of time-critical business data and a PCI Express (PCIe) 2.0 ×2 slot (×4 length) provides flexibility for expanding connectivity and/or storage with M.2 SATA/PCIe NVMe SSDs, via QNAP’s QM2 expansion cards. The TS-1232XU can be deployed to suit various needs for data storage, file backup, disaster recovery, containerized applications, surveillance, and more.
The built-in 10GbE SFP+ ports deliver high speed for mission-critical applications such as database hosting and VM storage.
One PCIe 2.0 ×2 slot (×4 length) is available for adding a 10GbE port and/or M.2 SSD slots. With SSDs installed, Qtier auto tiering can be enabled to optimize storage utilization.
Snapshots add an extra layer of protection to your disaster recovery plan, giving you the flexibility to create and revert snapshots locally and/or remotely.
The Hybrid Backup Sync app completes your backup strategies, allowing you to back up, restore and sync files locally and remotely.
QNAP’s Virtual JBOD technology can be used to expand remote NAS capacity, ensuring all available space can be fully utilized.
QNAP offers versatile surveillance solutions that help secure your premises and add values to the TS-1232XU.
Annapurna Labs Alpine AL-324 quad-core 1.7 GHz processor, 4 GB RAM, 2U
||Annapurna Labs Alpine AL-324 ARMv8 Cortex-A57 quad-core 1.7 GHz processor
||4 GB DDR4 (1 x 4GB)
||16 GB (1 x 16 GB)
||1 x DDR4 Long-DIMM slot
||12 x 3.5-inch SATA 6 Gbps bays
||3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
|SSD Cache Acceleration Support
||• 3.5-inch bays 1 to 12
Optional: SSDs on an optional QM2 PCIe expansion card
|10 Gigabit Ethernet Port
||2 x 10GbE SFP+
|Gigabit Ethernet Port
||2 x RJ45
||4 x USB 3.1 Gen 1 Type-A
||Slot 1: 2.0 x2
|Dimensions (H x W x D)
||89 x 482 x 534 mm
3.5 x 18.98 x 21.02 inch
||11.3 kg (24.91 lbs)
|Power Supply Unit
||ATX 250 W, 100 – 240 V AC, 50/60 Hz, 3.5A
|Power Consumption (W)
||HDD sleep: 30.63 W
In Operation: 67.56 W
||2 x 7 cm fans (12 V DC)
|Operating Temperature & Relative Humidity
||0 ~ 40˚C ( 32˚F ~ 104˚F ), 5 ~ 95% RH non-condensing, wet bulb temp.: 27˚C (80.6˚F)
