Thiết bị lưu trữ Qnap TS-677


Category:

Giá tham khảo:

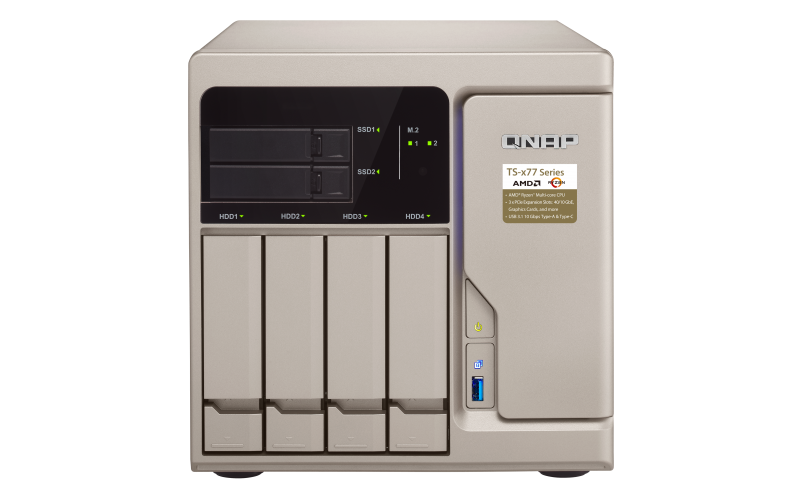

TS-677

The first Ryzen™-based NAS with up to 6 cores and 12 threads and graphics card support to redefine your virtualization and 4K processing experiences.



The TS-677 powered by AMD’s new 14nm Ryzen™ processor redefines the high-end desktop business NAS for greater video and virtual machine performance with up to 6 cores/12 threads native processing and Turbo Core up to 3.6 GHz. Cutting-edge hardware integrated with multitasking software makes the TS-677 the preeminent choice to tackle resource-demanding applications and tasks.

  • Two M.2 SATA 6Gb/s SSD slots for caching or caching pools to accelerate system performance.

  • PCIe expandability allows for 10GbE/40GbE adapters, PCIe NVMe SSD, graphics cards, USB 3.1 10Gbps cards, or wireless network cards.

  • Supports AMD Radeon™ and NVIDIA® graphics cards for video processing or GPU-passthrough to VMs.

  • Qtier™ technology and SSD caching enable 24/7 optimized storage efficiency.

  • Scalable storage supporting virtualization, containerized apps, centralized storage, backup, sharing, and disaster recovery.

  • RAID 50/60 is recommended for NAS with over 10 disks to strike a balance between capacity, protection, and performance.

Available Model

  • TS-677-1600-8G

    AMD Ryzen™ 5 1600 6 cores/12 threads 3.2 GHz processor (Turbo Core 3.6 GHz), 8 GB RAM

Specification



CPU Processor: AMD Ryzen™ 5 1600 6-core/12-thread 3.2 GHz processor, Turbo Core 3.6 GHz
Architecture: 64-bit
Graphics: Optional (with PCIe expansion card)
Encryption Engine: AES-NI
System Memory 8 GB DDR4 (2 x 4 GB)
Maximum Memory 64 GB (4 x 16 GB)
Memory Slot 4 x UDIMM DDR4
(For dual- or quad-DIMM configurations, you must use a pair of identical DDR4 modules.)
Flash Memory 5GB (DOM for dual OS)
Drive Bay 4 x 3.5-inch SATA 6 Gbps bays
2 x 2.5-inch SATA 6 Gbps bays, max 9.5mm drive height
Drive Compatibility 3.5-inch bays:
• 3.5-inch SATA hard disk drives
• 2.5-inch SATA hard disk drives
• 2.5-inch SATA solid state drives

2.5-inch bays:
• 2.5-inch solid state drives

M.2 SSD Slot 2 x M.2 2240/2260/2280/22110 SATA 6Gb/s SSDs

Note:
1. The M.2 SSD is not included as standard.
2. M.2 SSD operations can easily generate excessive heat. It is recommended to install a heatsink (from QNAP or a third-party provider) on the M.2 SSD.

SSD Cache Acceleration Support • 3.5-inch drive bays 1 to 4
• 2.5-inch drive bays 1 to 2
• M.2 slots 1 to 2
• Optional: SSD using PCIe expansion slot
Hot-swappable Yes
The following are not hot-swappable: M.2 SSDs, SSD cache drives, SSDs using PCIe expansion slots.
10 Gigabit Ethernet Port Optional: With PCIe expansion card
Gigabit Ethernet Port 4 x RJ45
PCIe Slot 1 x PCIe 3.0 x8
1 x PCIe 3.0 x4
1 x PCIe 2.0 x4
USB Port 2 x USB 3.1 10 Gbps
• Back: 1 x USB 3.1 10 Gbps Type-C
• Back: 1 x USB 3.1 10 Gbps Type-A

6 x USB 3.0
• Front: 1 x USB 3.0 Type-A (Note: It comes with the One-Touch Copy button)
• Back: 5 x USB 3.0 Type-A

HDMI Output Optional: With PCIe expansion card
Audio • 2 x 3.5 mm dynamic microphone jacks
• 1 x 3.5 mm line-out jack
• 1 x speaker
Note: You cannot use the speaker(s) and the line-out jack simultaneously.
IR sensor Yes
Note: Requires an optional graphics card and RM-IR004 remote control
USB One Touch Copy Front: USB 3.0 Type-A
Form Factor Tower
Dimensions (H x W x D) 231.9 x 224.9 x 319.8 mm
9.1 x 8.9 x 12.59 inch
Net Weight 7.7 kg (16.96 lbs)
Shipping: 9.35 kg (20.61 lbs)
Power Supply Unit 250W, 100-240V AC, 50/60Hz
Fan System: 1 x 80 mm
CPU: 2 x 90 mm
Operating Temperature & Relative Humidity 0 ~ 40˚C ( 32˚F ~ 104˚F ), 5 ~ 95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Security Slot Kensington security slot
