Thiết bị lưu trữ Qnap TVS-871T-i5-16G

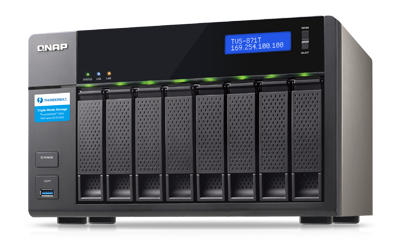

Qnap TVS-871T-i5-16G

SKU: TM1447
Category:

Giá tham khảo:

Features:

The QNAP TVS-871T is the world’s first Thunderbolt DAS/NAS/iSCSI SAN triple solution. With the incredible power of Thunderbolt 2 to double the speed potential to 20 Gbps, simultaneous 4K video transfer and display is enabled with considerable cost effectiveness. It’s also a perfect match for Thunderbolt-equipped Mac users for 4K workflows, file storage and high-speed sharing. Incorporating reliability and security, the TVS-871T delivers the highest transfer rates ever as storage with persistent throughput, and provides a complete business-ready storage solution to build a reliable private cloud.

  • Thunderbolt 2 and 10GbE dual network for 4K video playback and on-the-fly editing
  • Consolidated storage solution with direct attached storage (DAS), network attached storage (NAS) and iSCSI-SAN
  • Scalable up to 448TB with Thunderbolt 2 storage expansion enclosures TX-800P / TX-500P
  • 4 available combinations with Macs and JBOD for flexible attaching, sharing and expansion
  • Tiered storage architecture and SSD caching for optimal storage utilization
  • Supports QvPC Technology, running virtual machines, storage virtualization and full NAS encryption

Specifications:

CPU TVS-871T-i5-16G: Quad-core Intel® Core™ i5-4590S 3.0GHz
TVS-871T-i7-16G: Quad-core Intel® Core™ i7-4790S 3.2GHz
Floating Point Unit
Yes
Hardware Encryption Engine
Yes (AES-NI)
DRAM System memory: 16 GB DDR3 RAM
Memory module pre-installed: 8 GB x2
Total memory slots: 2 SODIMM
Flash Memory 512MB DOM
Thunderbolt 2 Ports 2 x Thunderbolt™ 2 high-speed ports
Hard Drive 8 x 3.5″or 2.5″ SATA 6Gb/s, SATA 3Gb/s hard drive or SSD
NOTE:

  1. The standard system is shipped without hard drives.
  2. For the hard drive compatibility list, please visit https://www.qnap.com/compatibility
Hard Disk Tray 8 x hot-swappable tray
LAN Port 2 x 10 Gigabit Ethernet port (10GBased-T)
4 x 1 Gigabit Ethernet port
LED Indicators Status, USB, LAN, HDDs
USB 3 x USB 3.0 port ( front: 1, rear: 2)
2 x USB 2.0 port (rear)
Support USB printer, pen drive, USB hub, and USB UPS etc.
HDMI 1
Buttons Power, USB One-touch-copy backup, Reset
Alarm Buzzer System warning
Form Factor Tower
Dimensions 185.2 (H) x 298.2 (W) x 235.4 (D) mm
7.29 (H) x 11.74 (W) x 9.27 (D) inch
Weight 7.83 kg/ 17.26 lbs (Net)
8.9 kg/ 19.62 lbs (Gross)
Power Consumption (W) TVS-871T-i5-8G:

HDD Standby: 45.43
In Operation: 82.06

TVS-871T-i7-16G:

HDD Standby: 45.37
In Operation: 82.51

(with 8 x WD WD20EFRX hard drive installed)

Temperature 0~40˚C
Relative Humidity 5~95% non-condensing, wet bulb: 27˚C.
Power Supply ATX
Input: 100-240V AC, 50/60Hz
Output: 350W
PCIe Slot 2 (1* PCIe Gen3 x8, 1* PCIe Gen2 x4)
Note: 2 PCle slots are occupied by a Thunderbolt 2 card and a 10GbE adapter
Fan 2 x quiet cooling fan (12 cm, 12V DC)

1. LED Indicators: Status, USB, LAN 8. 10 Gigabit Ethernet Port x 2
2. Hard Drive LEDs 9. Password & Network Settings Reset Button
3. Power Button 10. Gigabit LAN Port x 4
4. One Touch Copy Button 11. USB 3.0 Port x 2
5. USB 3.0 Port x 1 12. USB 2.0 Port x 2
6. Power Connector 13. HDMI Port x 1
7. Thunderbolt 2 Port x 2 14. Kensington Security Slot

Software Spec.

Operating System
QTS 4.1.4 (embedded Linux)
Storage Management
  1. QNAP flexible Volume/LUN with thin provisioning and space reclaim
  2. RAID 0,1, 5, 6, 10, + hot spare
  3. Supports storage pool
  4. Online volume expansion
  5. Online storage pool expansion
  6. Online RAID capacity expansion and online RAID level migration
  7. SMART data migration
  8. Storage expansion via QNAP TX-800P and TX-500P expansion unit
  9. Bad block scan and hard drive S.M.A.R.T.
  10. Bad block recovery
  11. RAID recovery
  12. Bitmap support
Supported Clients
  1. Windows XP, Vista, Windows 7 (32/64-bit), Windows 8 (32/64-bit), Windows Server 2003/2008 R2/2012, Apple Mac OS X, Linux & UNIX
Power Management
  1. Wake on LAN
  2. Internal hard drive standby mode
  3. Scheduled power on/off
  4. Automatic power on after power recovery
  5. USB and network UPS support with SNMP management
  6. System sleep mode (S3)
Supported Browsers
  1. Google Chrome
  2. Microsoft Internet Explorer 10+
  3. Mozilla Firefox 8+
  4. Apple Safari
Access Right Management
  1. Batch users creation
  2. Import/export users
  3. User quota management
  4. Local user access control for CIFS, AFP, FTP, and WebDAV
  5. Application access control for Photo Station, Music Station, Video Station, and Multimedia Station
  6. Subfolder permissions support for CIFS/SMB, AFP, FTP, and File Station
Multilingual Support
  1. Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish
myQNAPcloud Service
  1. Private cloud storage and sharing with myQNAPcloud id (QID)
  2. Free host name registration (DDNS)
  3. Auto router (via UPnP) configuration
  4. Web-based file manager with HTTPS 2048-bit encryption
  5. CloudLink for remote access without complicated router setup
  6. myQNAPcloud connect for easy VPN connection (Windows VPN utility)
File System
  1. Internal Hard Drive: EXT4
  2. External Hard Drive: EXT3, EXT4, NTFS, FAT32, HFS+
Qsync
  1. Syncs files among multiple devices with SSL support
  2. Selective synchronization for syncing specific folders only
  3. Share team folder as a file center for team collaboration (Maximum sync tasks: 32)
  4. Shares files by links via email-mail
  5. Policy settings for conflicted files and file type filter support
  6. Version control: up to 64 versions.
  7. Incremental synchronization for HDD space saving
  8. Supports Windows & Mac OS
Networking
  1. TCP/IP (IPv4 & IPv6: Dual Stack)
  2. Quad Gigabit NICs with jumbo frame (failover, multi-IP settings, port trunking/NIC teaming)
  3. Service binding based on network interfaces
  4. Proxy server (Squid available in App Center)
  5. Proxy client
  6. DHCP client, DHCP server
  7. Protocols: CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, and SMSC
  8. UPnP & Bonjour Discovery
  9. USB Wi-Fi Adapter Support
Web Administration
  1. Multi-window, multi-tasking based system management
  2. Movable Icons and personalized desktop
  3. Smart toolbar and dashboard for neat system status display on system status
  4. Smart fan Control
  5. Dynamic DNS (DDNS)
  6. SNMP (v2 & v3)
  7. Resource monitor
  8. Network recycle bin for file deletion via CIFS/SMB, AFP, and File Station
    1. Automatic Cleanup
    2. File Type Filter
  9. Comprehensive logs (events & connection)
  10. Syslog client/server
  11. System settings backup and restore
  12. Restore to factory default
  13. Mobile app: Qmanager for remote system monitoring & management
Security
  1. Network access protection with auto-blocking: SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP
  2. CIFS host access control for shared folders
  3. FIPS 140-2 validated AES 256-bit volume-based data encryption*
  4. AES 256-bit external drive encryption*
  5. Importable SSL certificates
  6. Instant alert via eE-mail, SMS, beep, and LCD panel

*SomeThe data encryption functions may not available in accordance with the legislative restrictions of some countries.



Powerful All-in-one server
File Server
  1. File Sharing across Windows, Mac, and Linux/UNIX
  2. Windows ACL
  3. Advanced folder permission for CIFS/SMB, AFP, FTP
  4. Shared folder aggregation (CIFS/SMB)
Server Virtualization & Clustering
  1. Server Virtualization & Clustering
  2. VMware vSphere (ESXi 5.x)
  3. VMware VAAI for iSCSI and VAAI for NAS
  4. vSphere Plug-in
  5. Citrix XenServer (6.2)
  6. Windows Server 2012 R2 Hyper-V
  7. Supports Microsoft ODX
  8. QNAP SMI-S provider for Microsoft SCVMM
FTP Server
  1. FTP over SSL/TLS (Explicit)
  2. FXP supported
  3. Passive ftp port range control
Surveillance Station
  1. Supports over 3,000 IP cameras
  2. Includes 4 free camera licenses, up to 72 camera channels via additional license purchase
  3. Instant playback to check the recent events
  4. Online editing to change edit cameras when in live view
  5. Visual aid by using e-maps
  6. Playback and speed control by shuttle bar
  7. Video preview using on playback timeline
  8. Intelligent Video Analytics (IVA) for advanced video search
  9. Surveillance client for Mac
  10. Mobile surveillance app: Vmobile (iOS and Android)
  11. Mobile recording app: Vcam (iOS and Android)
File Station
  1. Supports ISO Mounting (Up to 256 ISO Files)
  2. Supports thumbnail display of multimedia files
  3. Supports sharing download links and upload links
  4. Drag-n-drop Files via Google Chrome and Mozilla Firefox Browsers
  5. Photo, music, and video preview and playback with hardware- accelerated transcoding
  6. File Compression (ZIP or 7z)
  7. Creation of and sending download links for sharing public files with expiration time and password protection
  8. Support for displaying subtitles display (*.SRT, UTF-8 format)
    1. Video seeking support for video playback during on-the-fly transcoding
    2. Support slideshow playback in media viewer
  9. Mobile App: Qfile for file browsing and management)
Notes Station
  1. Graphical web-based editor for taking notes
  2. Integrate with NAS file system: insert attachment or image from NAS file system
  3. Event calendar and to-do list
  4. Image editor: a easy way to highlight the focus in your image
  5. Support note publishing with a single link
  6. Support key word search
  7. Provide Chrome Extension: Notes Station Clipper
  8. Clip web page content to your note
  9. Mobile app: Qnotes
Backup Station
  1. Remote replication server (over rsync)
  2. Real-time remote replication (RTRR) to another QNAP NAS or FTP server
  3. Works as both RTRR server & client with bandwidth control
  4. Real-time & scheduled backup
  5. Encryption, compression, file filter, and transfer rate limitation
  6. Encrypted replication between QNAP NAS servers
  7. Desktop backup with QNAP NetBak Replicator for Windows
  8. Apple Time Machine backup support
  9. Data backup to multiple external storage devices
  10. Third party backup software support: Veeam backup & replication, Acronis True Image, Arcserve backup, EMC retrospect, Symantec Backup Exec, etc.
VPN Server
  1. Secure remote access: PPTP & OpenVPN services
  2. Max number of clients: 30
Cloud Storage Backup
  1. Amazon S3
  2. Amazon Glacier
  3. WebDAV-based cloud storage
  4. Microsoft Azure
  5. Open Stack
  6. Google Drive
  7. Dropbox
  8. ElephantDrive
VPN Client
  1. Supported VPN protocols: PPTP & OpenVPN services
  2. PPTP Authentication: PAP, CHAP, MS-CHAP, MS-CHAPv2
  3. PPTP Encryption: None, AES 40/128 bit, AES 256 bit
  4. OpenVPN Encryption: None, AES 40/128 bit, AES 256 bit
  5. Transmission package monitor
  6. OpenVPN port control
  7. OpenVPN link compression
Print Server
  1. Max. number of printers: 3
  2. Support for Internet Printing Protocol
  3. Print job display and management
  4. IP-based and domain name-based privilege control
Domain Authentication Integration
  1. Microsoft Active Directory (AD)
  2. Domain controller
  3. LDAP server, LDAP client
  4. Domain users login via CIFS/SMB, AFP, FTP, and File Station
Virtualization Station
  1. Support Virtual Machine (VM) creation to run an operating system such as Windows, Linux, Unix and Android
  2. Support importing VM from the other virtual platform, e.g. VirtualBox, VMware Workstation
  3. Support exporting VM with *.ovf, *.qvm formats
  4. VM clone
  5. VM snapshot
  6. HTML5-based shared remote console
  7. User-based permission setting
  8. Support USB device pass-through
  9. Support VM console display via HDMI
AirPlay & Chromecast
  1. Streams videos, photos and music from the NAS to Apple TV via Qfile or QAirplay&Chromecast’s web-based controller
  2. Streams videos, photos and music from the NAS to TV with a Chromecast dongle via Qfile , Qvideo or QAirplay&Chromecast’s web-based controller
HD (HybridDesk) Station 3.0
  1. Playbacks videos, music, photos on TV with Kodi via HDMI output
  2. Watch various online contents such as YouTube, Flickr, Picasa, Shoutcast, and more, etc.
  3. Web browser (Chrome, Firefox)
  4. Supports USB U.S. keyboard and mouse
  5. Supports QNAP Qremote app and the official XBMC remote app
    1. 4 new desktop themes
    2. Supports user login permissions
App Center
  1. More than 100 official and community software add-ons (ex: Dropbox, Google Drive Sync, McAfee, WordPress, HappyGet II, etc.)
  2. Photo Station
  3. Music Station
  4. Video Station
  5. iTunes Server
  6. DLNA Server
  7. AirPlay: Streams videos, photos and music from NAS to Apple TV via Qfile or QAirplay’s web-based controller
  8. Digital TV Station
  9. Download Station
  10. HD Station + Kodi media player + Google Chrome
Signage Station
  1. Supports dynamic content including videos, images, music, and text messages
  2. Supports multi- users collaboration
  3. Supports searching via keywords,
  4. Supports sharing via email and social networks sharing
  5. Supports design software – iArtist Lite
  6. Supports account authority management
  7. Supports various web browsers for playback (Chrome, Firefox, IE, Safari)
  8. Supports most- viewed, latest- released and different categories content list
Mobile Apps
  1. Qfile: iOS, Android, Windows Phone 8+
  2. Qfile HD: iPad version
  3. Qmanager: iOS, Android
  4. Qmusic: iOS, Android
  5. Qremote: iOS, Android
  6. Qget: Android
  7. Vmobile: iOS, iPad, Android
iSCSI (IP SAN)
  1. iSCSI target with multi-LUNs per target (Up to 256 targets/LUNs combined)
  2. Support for LUN mapping & masking
  3. Online LUN capacity expansion
  4. Support for SPC-3 persistent reservation
  5. Support for MPIO & MC/S
  6. iSCSI LUN backup, one-time snapshot, and restoration
  7. iSCSI connection and management by QNAP Windows Qfinder
  8. Virtual disk drive (via iSCSI initiator)
  9. Stack chaining master
  10. Max No. of virtual disk drives: 8
PC Utilities
  1. Qfinder: Windows, Mac, Linux
  2. myQNAPcloud Connect: Windows
  3. Qsync: Windows, Mac
  4. NetBak Replicator: Windows
  5. QGet: Windows, Mac, Linux
  6. vSphere Client plug-in: Windows
  7. Qsnap: Windows

***Design and specifications are subject to change without notice.

Bạn cần tư vấn về giải pháp lưu trữ?
Hãy để lại thông tin, chuyên viên tư vấn sẽ liên hệ lại ngay.
1900 558879
