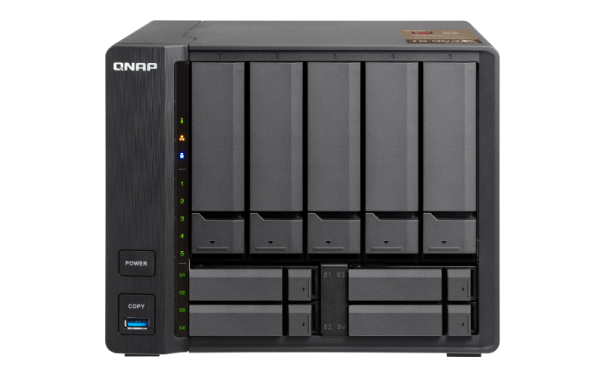

Cost-effective quad-core AMD NAS with 10GBASE-T port
The TS-963X is an affordable NAS for small and medium-sized businesses (SMBs) with AMD Embedded G-Series GX-420MC quad-core 2.0 GHz processor, 9 drive bays and a built-in 5-speed 10GBASE-T port for up to 10Gb connectivity. Four 2.5-inch drive bays can be used to install SSDs to enable caching and Qtier technology. One built-in 5-speed 10GBASE-T port (10G/5G/2.5G/1G/100M) also increases productivity of businesses with existing Cat 5e/6 cables, without extra costs or additional installation procedures. Combined with several QNAP technologies including VJBOD, Container Station, and Virtualization Station, the TS-963X has the potential to empower a wide range of business applications and can also be easily expanded to fit future data storage requirements.
-
Install up to four SSDs in the dedicated 2.5-inch drive bays to enable SSD caching and Qtier for optimal system performance.
-
The built-in 10GBASE-T port empowers mission-critical applications such as databases and virtualization.
-
The TS-963X can directly host virtual machines and containers, and act as storage for hypervisors such as VMware®, Citrix® and Microsoft® Hyper-V®.
-
The Hybrid Backup Sync app completes your backup strategies, allowing you to back up, restore and sync files locally and remotely.
-
Snapshots add an extra layer of protection to your disaster recovery plans, giving you the flexibility to create and revert snapshots locally and/or remotely.
-
Besides conventional expansion enclosures, the TS-963X can utilize QNAP’s Virtual JBOD technology to use the unused storage capacity of other QNAP NAS.
Available models
TS-963X-2G
AMD Embedded G-Series GX-420MC quad-core 2.0 GHz processor, 2 GB RAM (1 x 2 GB, up to 2 x 8 GB)
TS-963X-8G
AMD Embedded G-Series GX-420MC quad-core 2.0 GHz processor, 8 GB RAM (1 x 8 GB, up to 2 x 8 GB)
| CPU | AMD G-Series GX-420MC quad-core 2.0 GHz processor |
| CPU Architecture | 64-bit x86 |
| Floating Point Unit | |
| Encryption Engine | (AES-NI) |
| System Memory | 2 GB SO-DIMM DDR3L (1 x 2 GB)
or 8 GB SO-DIMM DDR3L (1 x 8 GB) |
| Maximum Memory | 16 GB (2 x 8 GB) |
| Memory Slot | 2 x SO-DIMM DDR3L
For dual-DIMM configurations, you must use a pair of identical DDR3L RAM modules.
|
| Flash Memory | 512MB (Dual boot OS protection) |
| Drive Bay | 5 x 2.5-inch or 3.5-inch + 4 x 2.5-inch
The system is shipped without HDD.
For the HDD compatibility list, please visit https://www.qnap.com/compatibility/ |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives2.5-inch bays: 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | |
| SSD Cache Acceleration Support | |
| Gigabit Ethernet Port (RJ45) | 1 |
| 10 Gigabit Ethernet Port | 1 x 10GBASE-T (10G/5G/2.5G/1G/100M)
Please use Cat 6a or Cat 7 LAN cables (sold separately) to achieve 10GbE speed over longer distance.
|
| Jumbo Frame | |
| USB 2.0 port | 2 |
| USB 3.0 port | 2 |
| Audio Output | 1 x speaker, 1 x line out |
| Form Factor | Tower |
| LED Indicators | Power/Status, LAN, USB, HDD1-5, SSD1-4 |
| Buttons | Power, One Touch Copy, Reset |
| Dimensions (HxWxD) | 188.2 × 329.3 × 279.6 mm |
| Weight (Net) | 3.53 kg |
| Operating temperature | 0 – 40 °C (32°F – 104°F) |
| Relative Humidity | 5~95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 120W 100-240V AC adapter |
| Power Consumption: HDD Sleep Mode | 35.64 W |
| Power Consumption: Operating Mode, Typical | 53.06 W
With 5 x HDD + 4 x SSD fully populated
|
| Fan | 1 x 14cm smart fan (12V DC) |
| Sound Level | 17.3 db(A) |
| Kensington Security Slot |
