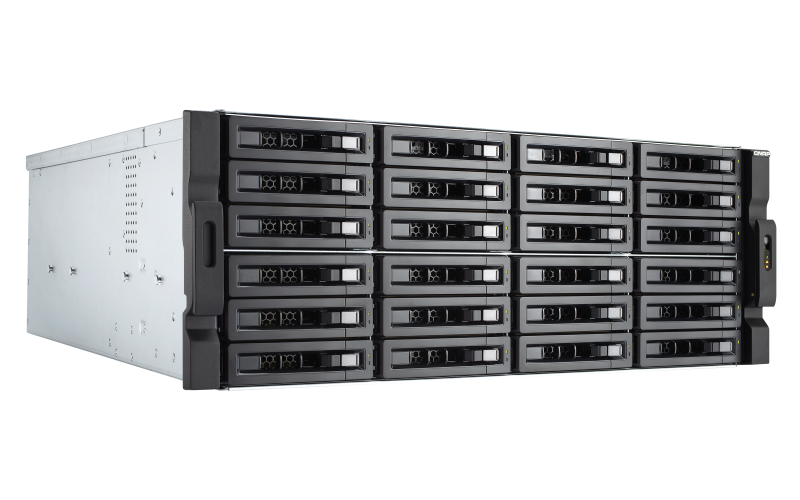

Thiết bị lưu trữ Qnap TS-2477XU-RP


Giá tham khảo:

Powered by AMD’s powerful Ryzen™ processor, the TS-2477XU-RP is capable of boosting virtual machine performance with up to 8 cores/16 threads and Turbo Core up to 4.1 GHz. Four PCIe Gen.3 slots provides expandability to provide more potential applications and functionality for the TS-2477XU-RP. The TS-2477XU-RP also features a redundant power supply to ensure maximum system uptime.
  • Two 10GbE SFP+ ports provide higher bandwidth to empower applications like virtualization, 4K video editing and file sharing.

  • PCIe expandability allows for installing 10GbE/40GbE adapters, PCIe NVMe SSD, graphics cards, USB 3.1 Gen 2 (10Gbps) cards, or wireless network cards.

  • Supports AMD Radeon™ and NVIDIA® graphics cards for video processing or GPU-passthrough to VMs.

  • Qtier™ technology and SSD caching enable 24/7 optimized storage efficiency.

  • Scalable storage supporting virtualization, containerized apps, centralized storage, backup, sharing, and disaster recovery.

  • RAID 50/60 is recommended for NAS with over 6 disks to strike a balance between capacity, protection, and performance

Available Models


AMD Ryzen™ 7 2700 8 cores/16 threads 3.2 GHz processor (Turbo Core 4.1 GHz), 16 GB RAM


AMD Ryzen™ 5 2600 6 cores/12 threads 3.4 GHz processor (Turbo Core 3.9 GHz), 8 GB RAM

CPU AMD Ryzen™ 7 2700 8-core 3.2 GHz processor, Turbo Core 4.1 GHz  (TS-2477XU-RP-2700-16G)

AMD Ryzen™ 5 2600 6-core 3.4 GHz processor, Turbo Core 3.9 GHz (TS-2477XU-RP-2600-8G)

CPU Architecture 64-bit x86
Floating Point Unit v
Encryption Engine  (AES-NI)
System Memory 16 GB UDIMM DDR4 (2 x 8GB) (TS-2477XU-RP-2700-16G)

8 GB UDIMM DDR4 (2 x 4GB) (TS-2477XU-RP-2600-8G)

Maximum Memory 64 GB (4 x 16 GB)
Memory Slot 4 x DDR4 long DIMM
Flash Memory 5GB (Dual boot OS protection)
Drive Bay 24 x 3.5-inch
Drive Compatibility 3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable v
SSD Cache Acceleration Support v
Gigabit Ethernet Port (RJ45) 2
10 Gigabit Ethernet Port 2 x 10GbE SFP+ SmartNIC port
Jumbo Frame v
PCIe Slot 4
Slot 1: Gen3 x4
Slot 2: Gen3 x8 or Gen3 x4*
Slot 3: Gen3 x8 or Gen3 x4**
Slot 4: Gen3 x4

*Slot 2 provides the width of PCIe Gen.3 x8 when Slot 1 is not in use, and provides the width of PCIe Gen.3 x4 when Slot 1 is in use.
**Slot 3 provides the width of PCIe Gen.3 x8 when Slot 4 is not in use, and provides the width of PCIe Gen.3 x4 when Slot 4 is in use.
USB 3.0 port 4
USB 3.1 Gen 2 (10Gbps) Port 1 x Type-C USB 3.1 Gen2 5V/3A 10Gbps
1 x Type-A USB 3.1 Gen2 5V/1A 10Gbps
Form Factor 4U Rackmount
LED Indicators HDD 1-24, Status, LAN, storage expansion port status
Buttons Power, Reset
Dimensions (HxWxD) 176.15 × 481.04 × 672.02 mm
Weight (Net) 22.66 kg
Operating temperature 0 – 40 °C (32°F – 104°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit 800W(x2), 100-240V
Power Consumption: Operating Mode, Typical 143.97 W

With drives fully populated
Fan System: 4 x 9.2cm fan (12V DC)
Sound Level 27.5 db(A)
System Warning Buzzer
Kensington Security Slot v
