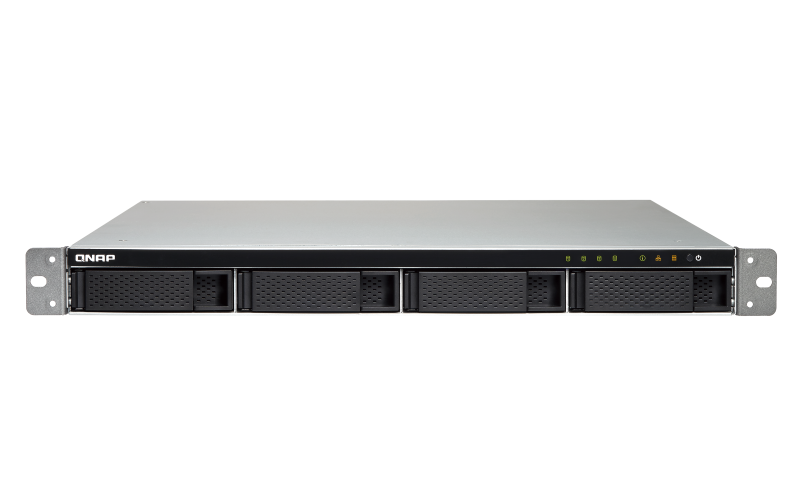

Thiết bị lưu trữ QNap TS-432XU-RP


Category:

Giá tham khảo:

10GbE-ready, entry-level rackmount NAS for SMB featuring two SFP+ ports, one PCIe 2.0 ×2 slot and redundant power supply



The TS-432XU-RP is built to deliver high performance, flexible expansion capabilities and versatile applications at an affordable and cost-effective price for small/medium-sized businesses. Two 10GbE SFP+ ports are capable of high-speed transmission of time-critical business data and a PCI Express (PCIe) 2.0 ×2 slot (×4 length) provides flexibility for expanding connectivity and/or storage with M.2 SATA/PCIe NVMe SSDs, via QNAP’s QM2 expansion cards. The TS-432XU-RP can be deployed to suit various needs for data storage, file backup, disaster recovery, containerized applications, surveillance, and more. The TS-432XU-RP is also equipped with a redundant power supply to ensure uninterrupted services.

  • The built-in 10GbE SFP+ ports deliver high speed for mission-critical applications such as database hosting and VM storage.

  • One PCIe 2.0 ×2 slot (×4 length) is available for adding a 10GbE port and/or M.2 SSD slots. With SSDs installed, Qtier auto tiering can be enabled to optimize storage utilization.

  • Snapshots add an extra layer of protection to your disaster recovery plan, giving you the flexibility to create and revert snapshots locally and/or remotely.

  • The Hybrid Backup Sync app completes your backup strategies, allowing you to back up, restore and sync files locally and remotely.

  • QNAP’s Virtual JBOD technology can be used to expand remote NAS capacity, ensuring all available space can be fully utilized.

  • The hot-swappable redundant power supply ensures high reliability and maximum system uptime.

Available models

  • TS-432XU-RP-2G

    Annapurna Labs Alpine AL-324 quad-core 1.7 GHz processor, 2 GB RAM, redundant power supply, 1U

Specification



CPU Annapurna Labs Alpine AL-324 ARMv8 Cortex-A57 quad-core 1.7 GHz processor
Architecture: 64-bit
Encryption Engine: Yes
System Memory 2 GB DDR4 (1 x 2 GB)
Maximum Memory 16 GB (1 x 16 GB)
Memory Slot 1 x DDR4 Long-DIMM slot
Drive Bay 4 x 3.5-inch SATA 6 Gbps bays
Drive Compatibility 3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
SSD Cache Acceleration Support • 3.5-inch bays 1 to 4
Optional: SSDs on an optional QM2 PCIe expansion card
10 Gigabit Ethernet Port 2 x 10GbE SFP+
Gigabit Ethernet Port 2 x RJ45
USB Port 4 x USB 3.1 Gen 1 Type-A
PCIe Slot Slot 1: 2.0 x2
Form Factor Rackmount
Dimensions (H x W x D) 44 x 439 x 499 mm
1.73 x 17.28 x 19.65 inch
Net Weight 9.16 kg (20.19 lbs)
Power Supply Unit 2 x ATX 250 W, 100 – 240 V AC, 50/60 Hz, 5A – 2.5A
Power Consumption (W) HDD sleep: 35.116 W
In Operation: 48.751 W
Fan 2 x 4 cm fans (12 V DC)
Sound Level 38.9 dB(A)
Operating Temperature & Relative Humidity 0 ~ 40˚C ( 32˚F ~ 104˚F ), 5 ~ 95% RH non-condensing, wet bulb temp.: 27˚C (80.6˚F)
