8th Gen Intel® Core™ processors. Built-in Mellanox® ConnectX®-4 Lx 10GbE Controller. iSER supported

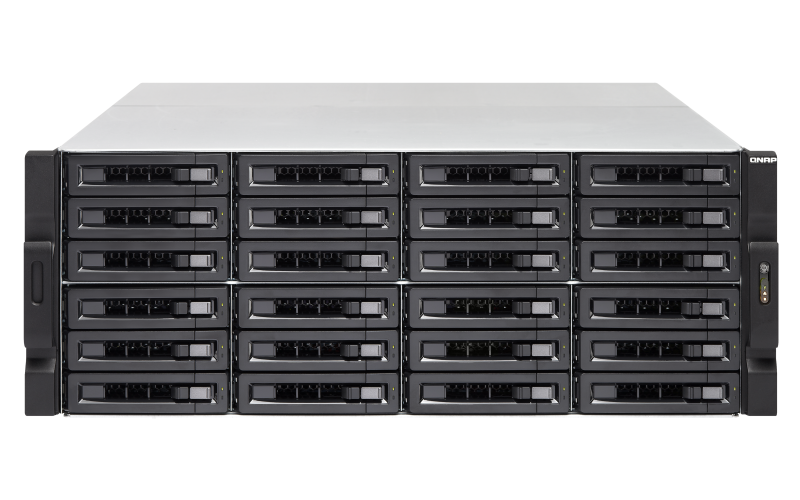

Designed for diversified business IT environments, the TVS-2472XU-RP features an 8th generation Intel® Core™ processor, Mellanox® ConnectX®-4 Lx 10GbE controller, and PCIe expansion for 25GbE / 40GbE connectivity to boost intensive large file sharing, heavily-loaded backups, or virtualization applications. PCIe expandability also allows for installing graphics cards to empower AI workflows and video transcoding, and the 4K HDMI 2.0 output can display surveillance videos on a monitor or TV to improve surveillance management. The TVS-2472XU-RP also features a redundant power supply to ensure maximum system uptime.
Two 10GbE SFP+ SmartNIC ports with iSER support accelerate large file sharing and intensive data transfer.
PCIe expandability allows for graphics cards or 40GbE/ 25GbE/ 10GbE adapters to increase application performance.
4K media playback and online transcoding. Directly view on a TV/monitor via HDMI 2.0 output (up to 4K @60Hz).
Software-defined SSD RAID extra over-provisioning (from 1% to 60%) optimizes SSD random write speeds and extends SSD lifespan.
Scalable storage supporting virtualization, containerized apps, centralized storage, backup, sharing, and disaster recovery.
Comprehensive security management, providing a security portal for your NAS and helping you to stay informed of NAS status at all times.
Intel® Core™ i5-8500 six-core 3.0 GHz processor (burst up to 4.0 GHz), 8 GB RAM (4 GB x2)
|CPU||Intel® Core™ i5-8500 6-core 3.0 GHz Processor, Max turbo to 4.0 GHz.|
|CPU Architecture||64-bit x86|
|Graphic Processors||Intel® UHD Graphics 630|
|Floating Point Unit|
|System Memory||8 GB UDIMM DDR4 (2 x 4GB)|
|Maximum Memory||64 GB (4 x 16 GB)|
|Memory Slot||4 x DDR4 long DIMM|
|Flash Memory||4GB (Dual boot OS protection)|
|Drive Bay||24 x 3.5-inch|
|Drive Compatibility||3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
|SSD Cache Acceleration Support|
|Gigabit Ethernet Port (RJ45)||4|
|10 Gigabit Ethernet Port||2 x 10GbE SFP+ SmartNIC port|
Slot 1: PCIe Gen2 x4 (PCH)
Slot 2: PCIe Gen3 x4 (CPU)
Slot 3: PCIe Gen2 x4 (PCH)
Slot 4: PCIe Gen3 x8 (CPU)
Slot 5: PCIe Gen2 x4 (PCH)
Slot 5 is preinstalled with a 10GbE network adapter
|USB 3.1 Gen 2 (10Gbps) Port||2 x Type-C USB 3.1 Gen2 5V/3A 10Gbps
4 x Type-A USB 3.1 Gen2 5V/1A 10Gbps
|HDMI Output||1, HDMI 2.0 (up to 3840 x 2160 @ 60Hz)|
|Form Factor||4U Rackmount|
|LED Indicators||HDD 1-24, Status, LAN, storage expansion port status|
|Dimensions (HxWxD)||176.15 × 481.04 × 672.02 mm|
|Weight (Net)||20.67 kg|
|Weight (Gross)||28.56 kg|
|Operating temperature||0 – 40 °C (32°F – 104°F)|
|Relative Humidity||5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)|
|Power Supply Unit||800W(x2), 100-240V|
|Power Consumption: Operating Mode, Typical||171.29 W
With WD10EFRX drives fully populated
|Fan||System: 4 x 9.2cm fan (12V DC)|
|Sound Level||36.3 db(A)|
|Kensington Security Slot|
