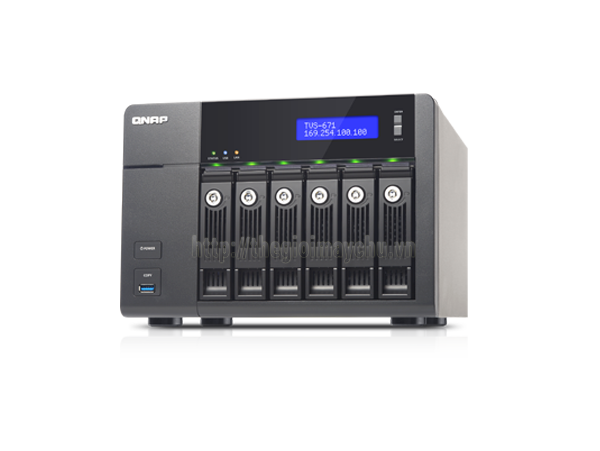

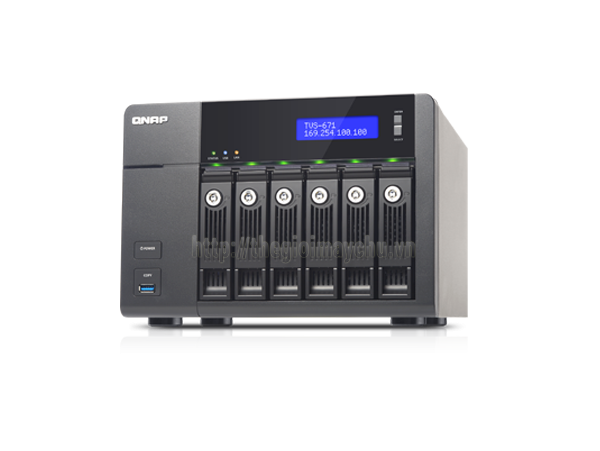

Thiết bị lưu trữ QNAP TVS-671-i3-4G

QNAP TVS-671-i3-4G, Nas Qnap TVS-671, Qnap TVS-671, thiet bi lưu tru QNAP, bo luu tru chuyen dung

SKU: TM105
Category:

Giá tham khảo:

Features
The TVS-671 is a powerful NAS storage solution designed for I/O-intensive tasks, mission-critical business applications and fast-growing data storage needs. Incorporating reliability and security, the TVS-671 delivers high performance with persistent throughput and provides a comprehensive storage solution for SMBs to build a reliable private cloud.

  • Manage, share, and back up business data with Real-time Remote Replication (RTRR)
  • 10GbE-ready, highly-efficient storage solution for 4K video playback, transcoding and on-the-fly editing
  • Use the TVS-671 as a PC with exclusive QvPC Technology
  • Supports VMware®, Citrix®, and Microsoft® Hyper-V and advanced virtualization features
  • Full NAS encryption by volume-based technology
  • Enhanced data security with high-performance AES 256-bit encryption and anti-virus
  • Run multiple Windows/Linux/Android-based virtual machines with the Virtualization Station


Hardware Spec.

CPU TVS-671-PT-4G: Dual-core Intel G3250 3.2 GHz Processor
TVS-671-i3-4G: Dual-core Intel Core i3-4150 3.5 GHz Processor
TVS-671-i5-8G: Quad-core Intel Core i5-4590S 3.0 GHz Processor (Turbo boost to 3.7 GHz)
DRAM

TVS-671-PT-4G/ TVS-671-i3-4G

System memory: 4 GB DDR3 RAM
Memory module pre-installed: 2 GB x2
Total memory slots: 2
Memory expandable up to: 16 GB (8GB x2)

TVS-671-i5-8G

System memory: 8 GB DDR3 RAM
Memory module pre-installed: 4 GB x2
Total memory slots: 2
Memory expandable up to: 16 GB (8GB x2)

NOTE:

1. When upgrading RAM, the original RAM module in the upgradable slot must be removed.
2. For the information of RAM module installation and compatible NAS models, please refer to the QNAP RAM Module Installation Guide.
Flash Memory 512MB DOM
Hard Drive 6 x 3.5-inch SATA 6Gb/s, SATA 3Gb/s hard drive or 2.5-inch SATA, SSD hard drive
NOTE:
1. The standard system is shipped without hard drives.
2. For the HDD compatibility list, please visit Compatibility list
Hard Drive Tray 6 x hot-swappable and lockable tray
LAN Port

4 x Gigabit RJ-45 Ethernet port
(Expandable up to 8 x 1 Gb LAN or 4 x 10 Gb + 4 x 1 Gb LAN by installing optional dual-port 10 Gb and 1 Gb network card)

Note:
1. For the optional network card compatibility list, please visit Compatibility list of Expansion Card
2. For the information of network card installation, please refer to chapter 6 in the Turbo NAS Hardware Manual.
LED Indicators Status, USB, LAN
USB

3x USB 3.0 port (front: 1, rear: 2)
2x USB 2.0 port (rear)

Support USB printer, pen drive, USB hub, and USB UPS etc.
HDMI 1
Buttons System: Power button and reset button
Alarm Buzzer System warning
Form Factor Tower
Dimensions 175 (H) x 257 (W) x 235 (D) mm
6.89 (H) x10.12 (W) x 9.25 (D) inch
Weight 6.18 kg/ 13.62 lbs (Net)
6.9 kg/ 15.21 lbs (Goss)
Sound Level (dB)

Sound pressure (LpAm) (by stander positions): 21.0 dB
Power Consumption (W)

TVS-671-PT-4G:

HDD Standby: 36.32
In Operation: 62.25

TVS-671-i3-4G:

HDD Standby: 38.72
In Operation: 66.30

TVS-671-i5-8G:

HDD Standby: 36.4
In Operation: 62.18

(with 6 x WD WD20EFRX hard drive installed)
Temperature

0~40˚C
Relative Humidity 5~95% non-condensing, wet bulb: 27˚C.
Power Supply Input: 100-240V AC, 50/60Hz Output: 250W
PCIe Slot 2 (1* PCIe Gen3 x8, 1* PCIe Gen2 x4)
Fan 2 x quiet cooling fan (9 cm, 12V DC)



Software spec.

Operating System
QTS 4.1 (embedded Linux)
Storage Management
  1. Online Volume Expansion
  2. RAID types: Single Disk, JBOD, RAID 0, 1, 5, 6, 10, 5 + hot spare
  3. Global hot spare
  4. Online RAID Capacity Expansion***
  5. Online RAID Level Migration
  6. Storage expansion via QNAP UX-500P / UX-800P expansion unit (Max: 1 unit)
  7. Bad block scan and hard drive S.M.A.R.T.
  8. Bad block recovery
  9. RAID recovery
  10. Bitmap support
Supported Clients*
  1. Windows 7 and Windows Server 2003 onward, Apple Mac OS X onward, Linux & UNIX
Power Management
  1. Wake on LAN
  2. Internal hard drive standby mode
  3. Scheduled power on/off
  4. Automatic power on after power recovery
  5. USB and network UPS support with SNMP management
  6. System sleep mode (S3)
Supported Browsers
  1. Google Chrome
  2. Microsoft Internet Explorer 10+
  3. Mozilla Firefox
  4. Apple Safari
Access Right Management
  1. Access Right Management
  2. Import/export users
  3. User quota management
  4. Local user access control for CIFS, AFP, FTP, and WebDAV
  5. Application access control for Photo Station, Music Station, Video Station, and Multimedia Station
  6. Subfolder permissions support for CIFS/SMB, AFP, FTP, and File Station
Multilingual Support
  1. Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish
myQNAPcloud Service
  1. Private cloud storage and sharing with myQNAPcloud id (QID)
  2. Free host name registration (DDNS)
  3. Auto router (via UPnP) configuration
  4. Web-based file manager with HTTPS 2048-bit encryption
  5. Cloudlink for remote access without complicated router setup
  6. myQNAPcloud connect for easy VPN connection (Windows VPN utility)
File System
  1. Internal hard drive: EXT4
  2. External hard drive: EXT4, EXT3, NTFS, FAT32, HFS+
Qsync
  1. Syncs files among multiple devices with SSL support
  2. Selective synchronization for syncing specific folders only
  3. Share team folder as a file center for team collaboration
  4. Shares files by links via e-mail
  5. Policy settings for conflicted files and file type filter support
  6. Version control: up to 64 versions.
  7. Incremental synchronization for HDD space saving
  8. Supports Windows & Mac OS
Networking
  1. TCP/IP: IPv4 & IPv6**
  2. Gigabit NICs with jumbo frame (failover, multi-IP settings, port trunking/NIC teaming )
  3. Service Binding based on Network Interfaces
  4. Proxy client, proxy server
  5. DHCP client, DHCP server
  6. NTP server
  7. Protocols: CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, and SMSC
  8. UPnP & Bonjour Discovery
  9. USB Wi-Fi Adapter Support
Web Administration
  1. Personalized desktop
  2. Smart toolbar and dashboard for system status
  3. Smart fan control
  4. Dynamic DNS (DDNS)
  5. SNMP (v2 & v3)
  6. Resource monitor
  7. Network recycle bin for file deletion via CIFS/SMB, AFP and File Station
    • Automatic cleanup
    • File type filter
  8. Comprehensive logs (events & connection)
  9. Syslog client/server
  10. Mobile app: Qmanager for remote system monitoring & management
Security
  1. Network access protection with auto-blocking: SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP
  2. CIFS host access control for shared folders
  3. FIPS 140-2 validated AES 256-bit volume-based data encryption*
  4. AES 256-bit external drive encryption*
  5. Importable SSL certificate
  6. Instant alert via E-mail, SMS, and beep
  7. Antivirus protection


Powerful All-in-one server
File Server
  1. File Sharing across Windows, Mac, and Linux/UNIX
  2. Windows ACL
  3. Advanced folder permission for CIFS/SMB, AFP, FTP
  4. Shared Folder Aggregation (CIFS/SMB)
Server Virtualization & Clustering
  1. Server Virtualization & Clustering
  2. VMware vSphere (ESXi 5.x)
  3. VMware VAAI for iSCSI and VAAI for NAS
  4. vSphere Plug-in
  5. Citrix XenServer (6.2)
  6. Windows Server 2012 R2 Hyper-V
  7. Supports Microsoft ODX
  8. QNAP SMI-S provider for Microsoft SCVMM


FTP Server
  1. FTP over SSL/TLS (Explicit)
  2. FXP supported
  3. Passive ftp port range control
Transcode Management
  1. Transcode video files to 240p, 360p, 480p, 720p and 1080p resolution
  2. Automatic video transcoding for watched folders
  3. Hardware accelerated transcoding support
File Station
  1. Supports ISO Mounting (Up to 256 ISO Files)
  2. Support thumbnail display of multimedia files
  3. Support share download link and upload link
  4. Drag-n-drop Files via Chrome and Firefox Browsers
  5. Photo, music, and video preview and playback with hardware accelerated transcoding
  6. File Compression and decompression (ZIP and 7z)
Surveillance Station
  1. Supports over 2,700 IP cameras
  2. Includes 4 Free Camera License, Up to 72 Camera Channels via Additional License Purchase
  3. Instant playback to check the recent event
  4. Online editing to edit cameras when live view
  5. Visual aid by e-map
  6. Playback and speed control by shuttle bar
  7. Video preview on playback timeline
  8. Intelligent video analytics (iva) for advanced video search
  9. Surveillance client for Mac
  10. Mobile surveillance app: vmobile (iOS and Android)
  11. Mobile recording app: vcam (iOS and Android)
Backup Station
  1. Remote replication server (over rsync)
  2. Real-time remote replication (RTRR) to another QNAP NAS or FTP server
  3. Works as both RTRR server & client with bandwidth control
  4. Real-time & scheduled backup
  5. Encryption, compression, file filter, and transfer rate limitation
  6. Encrypted replication between QNAP NAS servers
  7. Desktop backup with QNAP NetBak Replicator for Windows
  8. Apple Time Machine backup support
  9. Data backup to multiple external storage devices
  10. Third party backup software support: Veeam backup & replication, Acronis True Image, Arcserve backup, EMC retrospect, Symantec Backup Exec, etc.
Notes Station
  1. Graphical web-based editor for taking notes
  2. Integrate with NAS file system: insert attachment or image from NAS file system
  3. Event calendar and to-do list
  4. Image editor: a easy way to highlight the focus in your image
  5. Support note publishing with a single link
  6. Support key word search
  7. Provide Chrome Extension: Notes Station Clipper
    • Clip web page content to your note
  8. Mobile app: Qnotes
Cloud Storage Backup
  1. Amazon S3
  2. Amazon Glacier
  3. WebDAV-based cloud storage
  4. Microsoft Azure
  5. Open Stack
  6. Google Cloud Storage
  7. Dropbox
  8. ElephantDrive
  9. Symform


VPN Server
  1. Secure remote access: PPTP & OpenVPN VPN services
  2. Max number of clients: 15 for PPTP & 15 for OpenVPN
Print Server
  1. Max number of printers: 3
  2. Print job display and management
  3. IP-based and domain name-based privilege control
  4. IP- and Domain Name-based Privilege Control
Domain Authentication Integration
  1. Microsoft Active Directory (AD)
  2. Domain controller
  3. LDAP server, LDAP client
  4. Domain users login via CIFS/SMB, AFP, FTP, and File Station
Virtualization Station
  1. Support Virtual Machine (VM) creation to run an operating system such as Windows, Linux, Unix and Android
  2. Support importing VM from the other virtual platform, e.g. VirtualBox, VMware Workstation
  3. Support exporting VM with *.ovf, *.qvm formats
  4. VM clone
  5. VM snapshot
  6. HTML5-based shared remote console
  7. User-based permission setting
  8. Support USB device pass-through
  9. Support VM console display via HDMI
App Center
  1. More than 100 official and community software add-ons (ex: Dropbox, Google Cloud Storage Sync, McAfee, WordPress, HappyGet II, etc.)
  2. Photo Station
  3. Music Station
  4. Video Station
  5. iTunes Server
  6. DLNA Server
  7. AirPlay: Streams videos, photos and music from NAS to Apple TV via Qfile or QAirPlay’s web-based controller
  8. Digital TV Station
    • DVB-T Digital TV Live View, Recording, and Playback
    • Supports up to 2 USB TV Tuners
    • Electronic Programming Guide (EPG) with Scheduled Recording Note: The availability of DVB-T broadcasting and EPG may vary depending on geographic locations.
  9. Download Station
  10. HD Station + Kodi media player + Google Chrome
Signage Station
  1. Support dynamic content includes video, image, music, and text message
  2. Multi-user collaboration
  3. Support email and social network sharing
  4. Support design software – iArtist Lite for Windows®
  5. Support various browser playback ( Chrome, Firefox, IE, Safari)
  6. Support most viewed, latest released and different categories content list
Mobile Apps
  1. Qfile: iOS, Android Phone, window phone
  2. Qfile HD: iPad version
  3. Qmanager: iOS, Android Phone
  4. Qmusic: iOS, Android Phone
  5. Qremote: iOS, Android Phone
  6. Qget: Android Phone
  7. Vmobile: iOS, iPad, Android Phone


iSCSI (IP SAN)
  1. iSCSI Target
  2. Multi-LUNs per Target
  3. Up to 256 Targets/LUNs Combined
  4. Supports LUN Mapping & Masking
  5. File-based LUN
  6. Online LUN Capacity Expansion
  7. Supports SPC-3 Persistent Reservation, MPIO, MC/S
  8. iSCSI LUN Backup, One-time Snapshot, and Restore
  9. iSCSI Connection and Management by QNAP Finder (Windows)
  10. Virtual Disk Drive (via iSCSI Initiator)
  11. Max No. of Virtual Disk Drives: 8



(1). Not all services are supported.

*The data encryption functions may not available in accordance to the legislative restrictions of some countries.
Design and specifications are subject to change without notice.

Bạn cần tư vấn về giải pháp lưu trữ?
Hãy để lại thông tin, chuyên viên tư vấn sẽ liên hệ lại ngay.
1900 558879






Related products


Bán lẻ và phân phối máy chủ, linh kiện máy chủ
Nhất Tiến Chung
© 2024 Nhat Tien Chung IT Telecoms
